概览

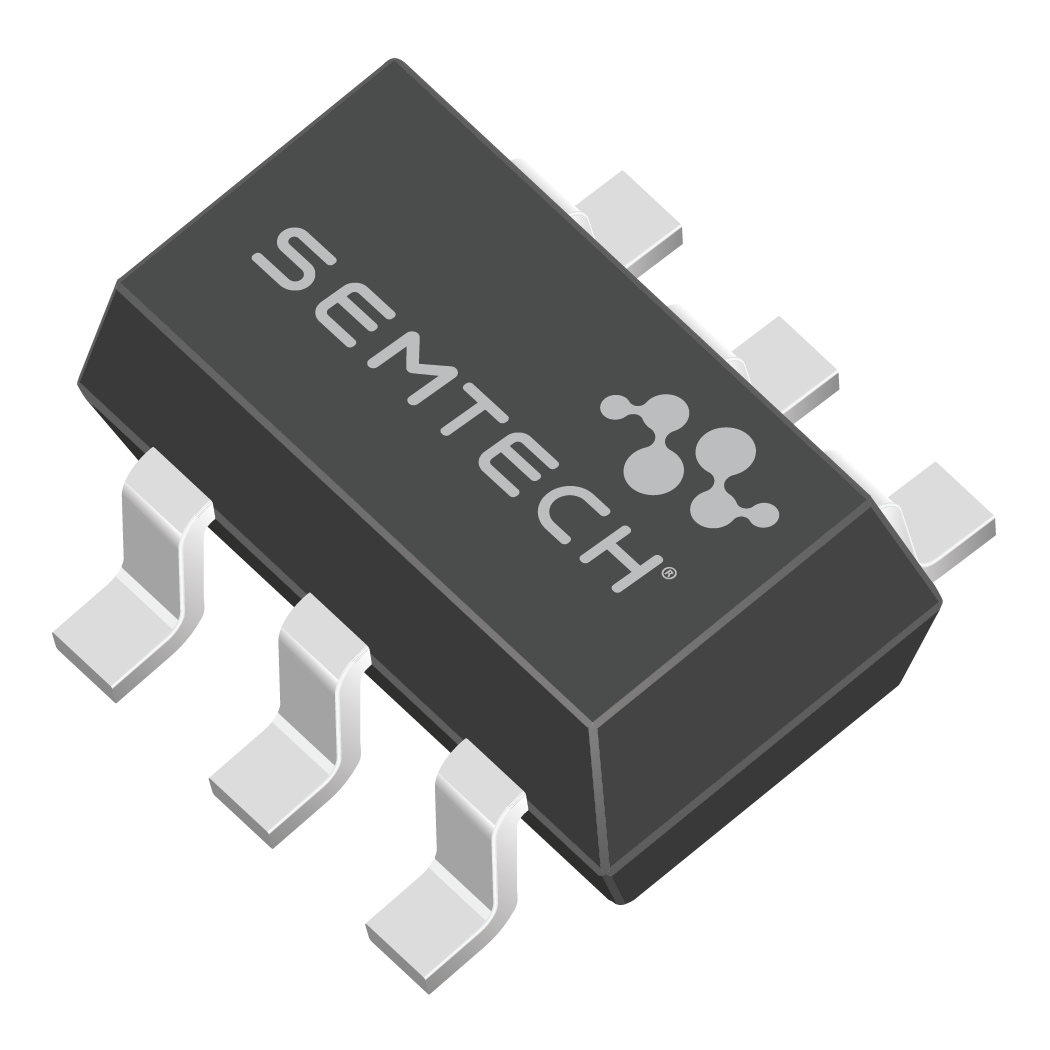

The STF203 is a combination EMI filter and line termination device with integrated TVS diodes for use on upstream USB ports. It is constructed using a proprietary technology that allows passive components and TVS diodes to be integrated in the same package. Each device will provide termination, filtering, and ESD protection for one upstream USB port. The STF203 is an easily implemented solution for meeting the requirements of revision 1.1 of the Universal Serial Bus specification. Line termination is achieved with series resistors on both the D+ and D- USB lines. The STF203 has resistor values of 15/22/33Ω. The 1.5kΩ pull-up resistor is required by the USB specification to identify the equipment as either a full-speed or low-speed device. The 47pF capacitors are required to bypass high frequency energy to ground and to control the edge rate of the USB signals. The TVS diodes provide ESD protection of both (D+ and D-) data lines and the voltage bus (VBUS).功能
- Bidirectional EMI/RFI filtering and line termination with integrated ESD protection
- ESD protection for USB power (VBUS) and data lines (D+ and D-)
- IEC 61000-4-2 (ESD): ±15kV (air), ±8kV (contact)
- IEC 61000-4-4 (EFT): 40A (5/50ns)
- Filtering and termination for one USB port
- Series resistors: 15/22/33Ω
- Low TVS operating voltage (5.25V)
- Low leakage current: 5μA typ at VRWM=5.25V
- Small SC70-6L package
- 固态硅雪崩技术
封装
SC70-6L
订购代码
- STF203-15.TCT
- STF203-22.TCT
- STF203-33.TCT
- 3,000 (Qty per Reel) & 7 Inch (Reel Size)
PB Free/ROHS
Learn More →
| 文档 | Release Date | 键入 |  |
|---|---|---|---|
| STF203 Datasheet | 2018-12-15 | | |
应用
- USB Ports
- 蜂窝手机
- PDAs
- 数码相机
- PC Peripherals
- MP3 播放器
