EClamp8052P

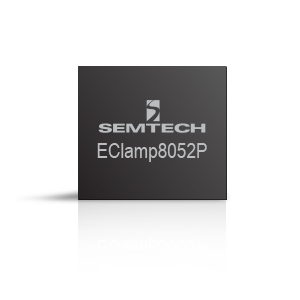

EClamp®8052P integrates common mode filtering with low capacitance ESD protection and is designed specifically for MIPI, MHL, and USB interfaces. Each device provides filtering and ESD protection for one high-speed differential pair.
功能
- Transient Protection to
- IEC 61000-4-2 (ESD) 30kV (Air), 25kV (Contact)
- IEC 61000-4-4 (EFT) 4 kV (5/50ns)
- IEC 61000-4-5 (Lightning) 6A (8/20μs)
- ISO-10605 (ESD) 30kV (Air), 25kV (Contact)
- Qualified to AEC-Q100, Grade 1
- Package design optimized for high speed lines
- ESD protection and common mode filtering for two high-speed lines
- High differential bandwidth cutoff frequency
- Low ESD Clamping Voltage
- Dynamic Resistance: 0.50 Ω (Typ)
- Solid-State Silicon-Avalanche Technology
- 汽车应用
- Industrial Equipment
- USB 2.0 / USB 3.0
- HDMI/MHL
- MIPI Camera Serial Interface (CSI)
- MIPI 显示器串行接口 (DSI)
应用
封装
- SGP1917N5: 1.9 x 1.70 x 0.55 mm
订购代码
- EClamp8052P.TCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant, 3,000 pcs.
