EClamp2422N
Not recommended for new designs.

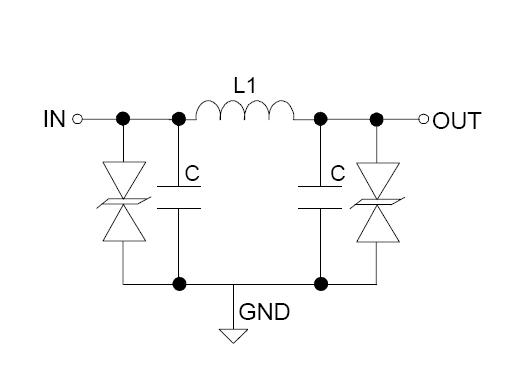

The EClamp® 2422N is a (C-L-C) low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
功能
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- TVS working voltage: 5V
- Inductor: 2nH (Typical)
- Capacitors: 100pF (Typical at VR = 0V)
- Protection and filtering for two lines
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
- 蜂窝手机
- Speaker Ports in Portables
- Notebook Computers
应用
封装

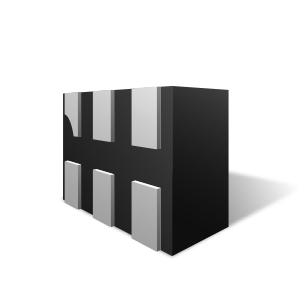

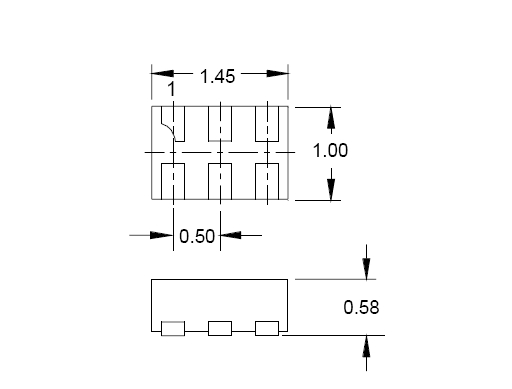

- SLP1510N6
- 3000 pcs. Tape & Reel
订购代码
- EClamp2422N.TCT
Pb(Lead)-Free/RoHS-Green Info
