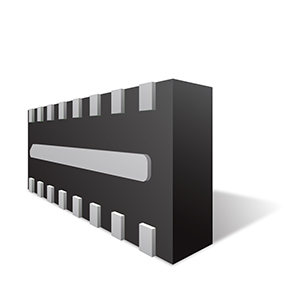

EClamp2388K

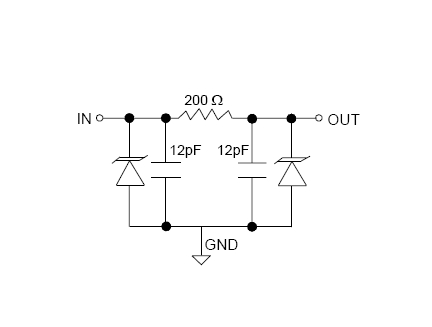

EClamp®2388K 是集成 TVS 二极管的低通滤波器阵列。它可以抑制多余的 EMI-RFI 信号，并为便携电子设备提供静电放电 (ESD) 保护。
功能
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- Filter performance: 30dB minimum attenuation 800MHz to 2.7GHz
- TVS working voltage: 5V
- 电阻：200Ω +/- 15%
- Typical Capacitance: 12pF (VR = 2.5V)
- Protection and filtering for eight lines
- Solid-state technology
- Lead-free, RoHS and WEEE compliant
- Color LCD Protection
- Cell Phone CCD Camera Lines
- CDMA/GSM 手机
应用
封装

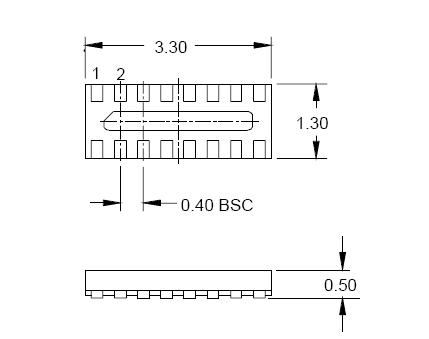

- SLP3313P16
- 3000 pcs. Tape & Reel
订购代码
- EClamp2388K.TCT
Pb(Lead)-Free/RoHS-Green Info
