概览

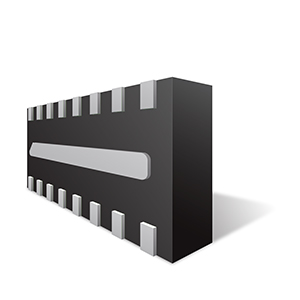

The EClamp®2378K is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
功能
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- Filter performance: 30dB minimum attenuation 1.8GHz to 2.5GHz
- TVS working voltage: 5V

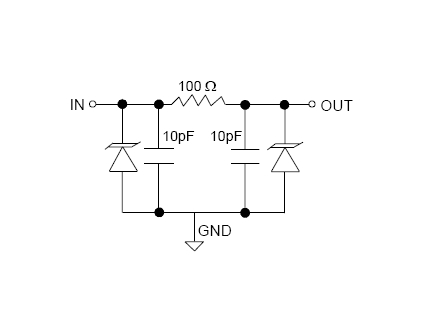

- Resistor: 100Ω +/− 15%
- Typical Capacitance: 20pF (VR = 0V)
- Protection and filtering for eight lines
- Solid-state technology
- Lead Free, RoHS/WEEE Compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| ECLAMP2378K 数据表 | 2018-12-14 | | |
应用
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
