EClamp2374P

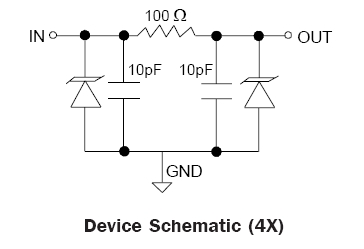

The EClamp®2374P is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
功能
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
应用
封装

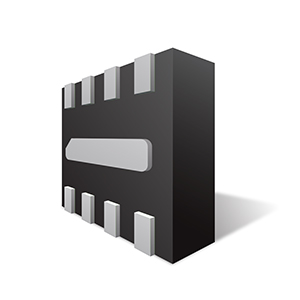

- SLP2116P8
- 3000 pcs. Tape & Reel
订购代码
- EClamp2374P.TCT
Pb(Lead)-Free/RoHS-Green Info
