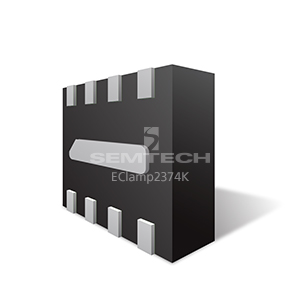

EClamp2374K

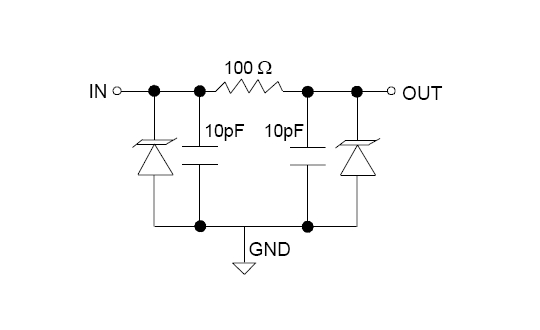

The EClamp®2374K is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment. This state-of-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. They have been optimized for protection of color LCD panels in cellular phones and other portable electronics.
功能
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- Filter performance: 30dB minimum attenuation 1.8GHz to 2.5GHz
- TVS working voltage: 5V
- Resistor: 100Ω +/− 15%
- Typical Capacitance: 20pF (VR = 0V)
- Protection and filtering for four lines
- Solid-state technology
- Lead Free, RoHS/WEEE compliant
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
应用
封装

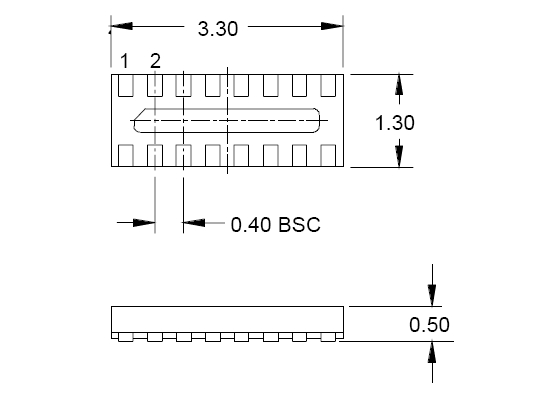

- SLP1713P8
- 3000 pc tape and reel
订购代码
- EClamp2374K.TCT
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
ECLAMP2374K
产品描述
ESD/EMI PROTECTION FOR COLOR LCD INTERFADES
引脚数
8
封装类型
SLP1713P8
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
镍钯金
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
声明和报告
IPC-1752-2
