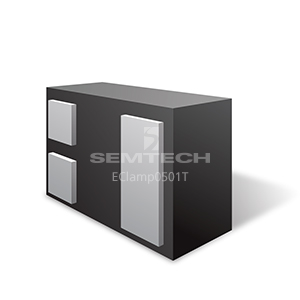

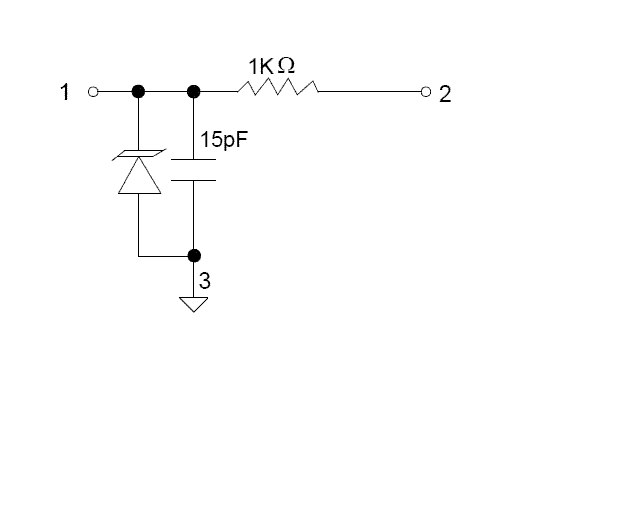

EClamp0501T
The EClamp® 0501T TVS diode is designed to protect sensitive electronics from damage or latch-up due to ESD. This state-of-the-art device utilizes solid-state silicon-avalanche technology for superior clamping performance and DC electrical characteristics. It has been optimized for protection of digital lines in cellular phones and other portable electronics.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small package (1.0 x 0.6 x 0.4mm)
- Protects one data line
- TVS working voltage: 5V
- Series Resistor: 1K Ohm
- Capacitance: 15pF (Maximum at VR = 0V)
- 小漏电流
- 固态硅雪崩技术
- 蜂窝手机和配件
- 个人数码助理 (PDA)
- 笔记本电脑和手持设备
- 便携式仪表
- 外围设备
- MP3 播放器
应用
封装
- SLP1006P3T
订购代码
- EClamp0501T.TCT 3000 pcs Tape and Reel, Pb-Free, Halogen Free, RoHS/WEEE Compliant
