概览

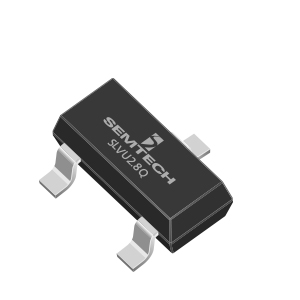

SLVU2.8Q 瞬态电压抑制器经 AEC-Q100 3 级认证，适用于汽车应用。它专为保护连接到数据和传输线的灵敏元件而设计，以防止过电压事件。它可用于保护一条以高达 2.8 伏特电压运行的单端线路。
功能
- 400 瓦峰值脉冲功率 (tp = 8/20μs)
- Transient protection for high speed data lines to
- IEC 61000-4-2 (ESD) ±30kV (air), ±25kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5（雷电）24A (8/20μs)
- 每个设备保护一条单向线路
- 经 AEC-Q100 3 级认证
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- 无铅、无卤素，符合 RoHS 和 WEEE 标准
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SLVU2.8Q 数据表 | 2019-05-25 | | |
应用
- 模拟视频
- 导航系统
- 触摸屏
