概览

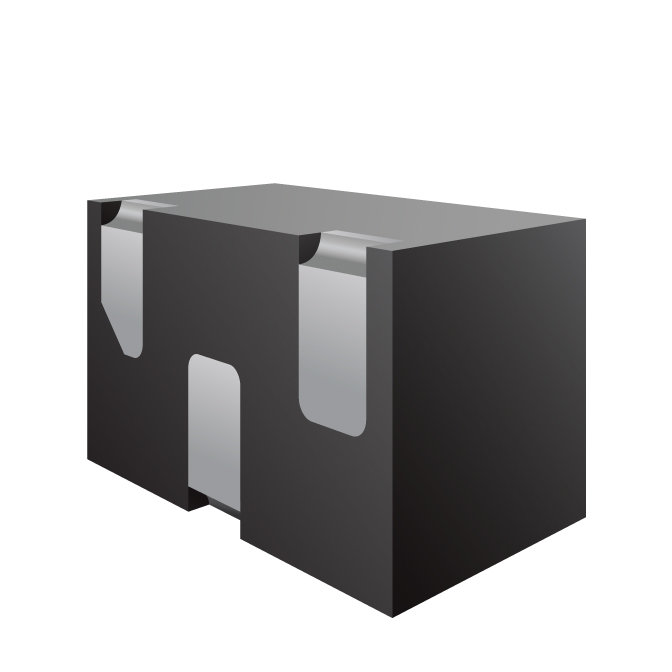

RailClamp® RClamp01892PWQ TVS arrays are low capacitance electrostatic discharge (ESD) protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive high speed components from over-voltage caused by ESD, cable discharge events (CDE) and electrical fast transients (EFT).
功能
- Transient protection to:
- IEC 61000-4-2 (ESD):+/-8kV (contact)
- IEC 61000-4-4 (EFT): 4kV (tp=5/50ns)
- IEC 61000-4-5 (lightning): 2.5A (tp=8/20μs)
- Qualified to AEC-Q100, grade 1 and AEC-Q101
- 占用较小 PCB 空间：0.6mm
- Protects two high speed data lines
- Working voltage: 1.8V
- Low capacitance: 0.3pF(typical)
- Dynamic resistance: 0.39Ω
- 固态硅雪崩技术
- Pb-free, Halogen-free, RoHS/WEEE-compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| RCLAMP01892PWQ Datasheet | 2022-08-08 | | |
应用
- 汽车多速率以太网（2.5G 和 5G）
- 1000Base-T1 Ethernet
- Infotainment systems
- Camera modules
- Low voltage inputs
- Industrial equipment
