EClamp8052PQ

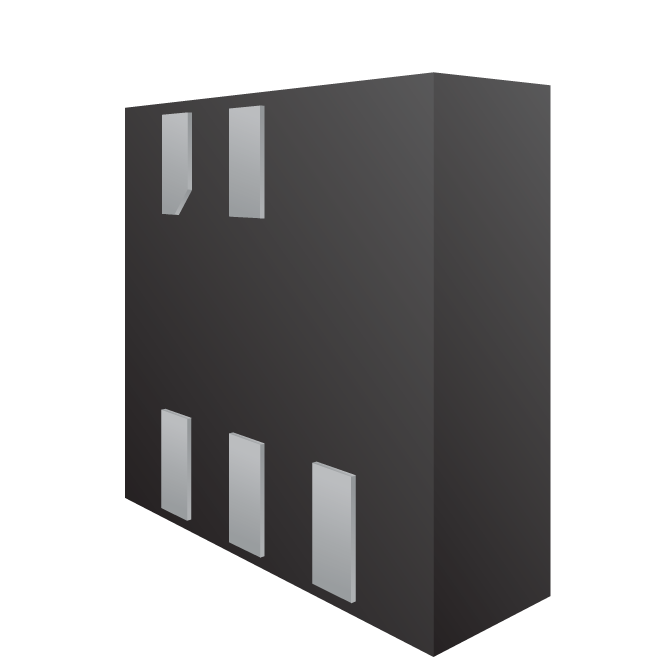

EClamp®8052PQ 集成了共模滤波和低电容 ESD 防护。此器件符合 AEC-Q100 标准，专为 MIPI、MHL 和 USB 接口而设计。每个器件都为一个高速差分对提供滤波和 ESD 防护。
功能
- Transient Protection to
- IEC 61000-4-2 (ESD) 30kV (Air), 25kV (Contact)
- IEC 61000-4-4 (EFT) 4 kV (5/50ns)
- IEC 61000-4-5 (Lightning) 6A (8/20μs)
- ISO-10605 (ESD) 30kV (Air), 25kV (Contact)
- Qualified to AEC-Q100, Grade 1
- Package design optimized for high speed lines
- ESD protection and common mode filtering for two high-speed lines
- High differential bandwidth cutoff frequency
- Low ESD Clamping Voltage
- 动态电阻：0.50 欧姆（典型值）
- Solid-State Silicon-Avalanche Technology
- 汽车应用
- Industrial Equipment
- USB 2.0 / USB 3.0
- HDMI/MHL
- MIPI Camera Serial Interface (CSI)
- MIPI 显示器串行接口 (DSI)
应用
封装
- SGP1917N5: 1.9 x 1.70 x 0.55 mm
订购代码
- EClamp8052PQTCT：无铅、无卤素且符合 RoHS/WEEE 标准，3,000 颗。
Pb(Lead)-Free/RoHS-Green Info
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
