概览

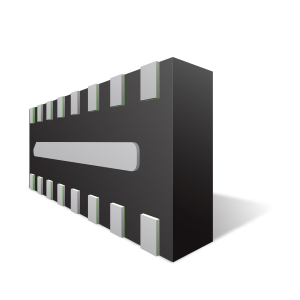

EClamp®2410PQ 结合了 EMI 滤波器和线路终端器件，并集成有 TVS 二极管，用于多媒体卡接口。
功能
- Bidirectional EMI/RFI filtering and line termination with integrated ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- TVS working voltage: 5V
- Termination Resistors: 45Ω
- Pull Up Resistors: 15kΩ (3 each) and 50kΩ
- Typical Capacitance per Line: 12pF (VR = 2.5V)
- 六条线路和 Vdd 保护和终端
- Solid-state technology
- AEC-Q100 1 级认证
| 文档 | Release Date | Type |  |
|---|---|---|---|
| ECLAMP2410PQ 数据表 | 2019-05-25 | | |
应用
- T-Flash/MicroSD 接口
- MMC Interfaces
- CDMA、GSM、3G 手机
- 汽车应用
