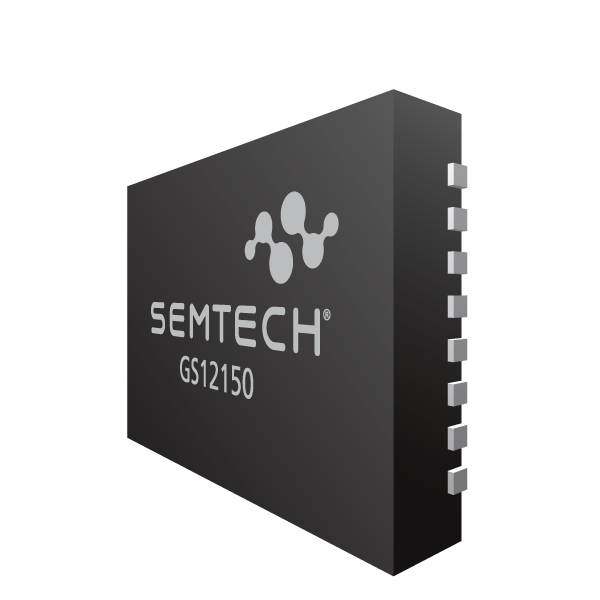

GS12150

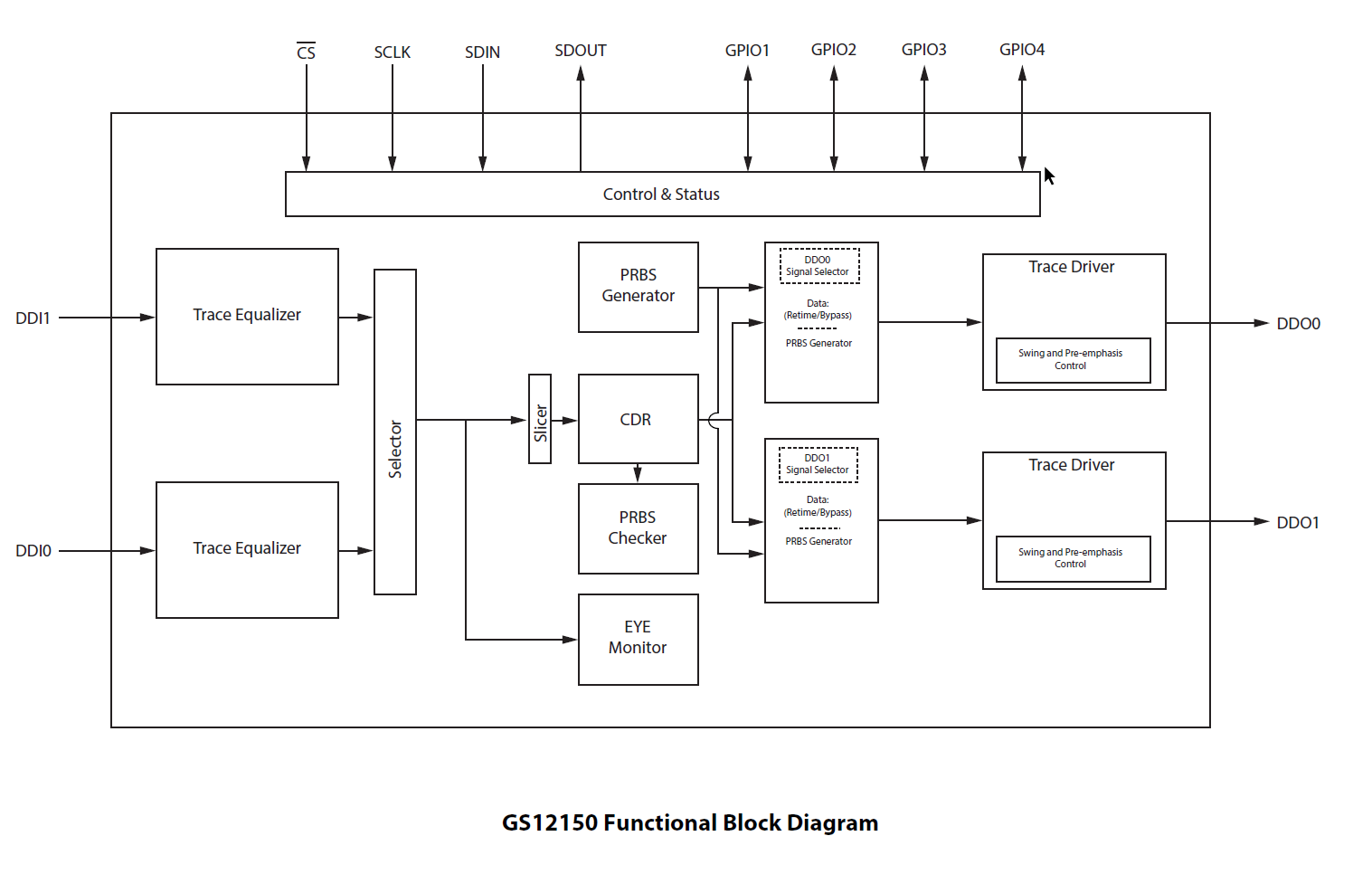

The GS12150 is a low-power, multi-rate reclocker that features both an integrated trace equalizer and trace driver, supporting rates up to 12G UHD-SDI, inclusive of 10GbE. It is designed to receive 100Ω differential input signals, automatically recover the embedded clock from the digital video signal and re-time the incoming data. Each of the 100Ω trace inputs supports up to 17dB of insertion loss.
集成的眼图监控器可提供对后均衡输入信号的无干扰任务模式分析。 256x128 分辨率扫描矩阵可提供准确的信号分析，加速原型生成，实现场分析。 内置宏可实现定制截面分析以及快速横向和纵向眼张开度测量。
扫描和可配置空间及时间阈值之间高相位一致时，可在场中部署算法，用于分析长期信号质量变化（浴盘图），从而缩短系统安装设施间歇误差的故障排除时间。两个独立控制的跟踪驱动器具有可高度配置的预加重和摆幅控制，用于补偿长距离痕迹丢失和连接器丢失。预加重脉冲宽度和幅度可进行优化，补偿由于过孔、连接器和桩线对传输线的频率响应造成的扰动。
功能
- 两个输入/输出重定时器，配备 2:1 输入选择器和芯片级终端
- 输入/输出符合 SMPTE ST 2082-1、ST 2081-1、ST 424、ST 292-1 和 ST 259
- 从 1 Mb/s 到 11.88 Gb/s 的多标准运行
- 除了标准 SMPTE 速率，本设备还支持 270 Mb/s 的 DVB-ASI，125 Mb/s 的 MADI 和 10GbE 重定时
- 3D 输入信号眼图监视器
- PRBS 生成器和检验器
- 迹线驱动器功能
- 集成式 100 欧姆差分输出终端
- 扩展输出直流耦合支持 1.2 V 至 2.5 V 输出电源范围
- 迹线驱动器数据输出以补偿 11.88 Gb/s 速率时最多 20 英寸的 FR4
- 手动/自动重定时器旁路
- 信号丢失时手动或自动静音或禁用
- 迹线均衡器功能
- 集成式 100 欧姆差分输入终端
- Automatic power down on loss of signal
- 迹线均衡以补偿 11.88 Gb/s 速率时最多 20 英寸的 FR4
- Automatic input offset compensation
- CDR 功能
- 手动或自动速率模式
- 宽环路带宽控制
- 以下列数据速率进行重定时：125Mb/s、270Mb/s、1.485Gb/s、2.97Gb/s、5.94Gb/s、11.88Gb/s 和 10.3125 Gb/s。其中包括 f/1.001 速率。
其他功能
- Single 1.8V power supply for analog and digital core
- 1.2 V、1.8 V 或 2.5 V 迹线驱动器输出电源
- GSPI 串行控制和监控接口
- 四个可配置的 GPIO 引脚，可用于控制或状态监控
- 工作温度范围宽：-40℃ 至 +85℃
- 小型 6 mm x 4 mm 40 引脚 QFN 封装
- 封装无铅/无卤素/符合 RoHS 和 WEEE 标准
用于支持 UHDTV1、UHDTV2、4D D-Cinema 和 3D HFR 以及 HDR 制作图像格式的下一代 12G UHD-SDI 基础设施。
典型应用：摄像机、切换器、分配放大器和路由器。
