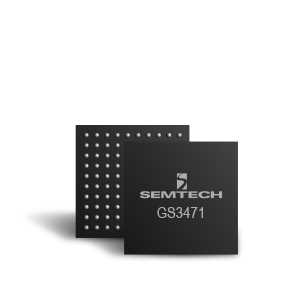

Semtech GS3471

The GS3471 is a multi-rate SDI Receiver with complete SMPTE processing. The SMPTE processing features can be bypassed to support signals with other coding schemes. Multi-link UHD can be supported when multiple GS3471 devices are used.
The GS3471 integrates Semtech's adaptive cable equalizer technology, achieving unprecedented cable lengths and jitter tolerance. The device features a dual input buffer with a 2x2 MUX. The 2x2 MUX can select between either input for de-serialization and can route either of the two inputs to the serial loopback independently (reclocked or non-reclocked). In addition, the integrated Re-timer with an internal VCO provides a wide Input Jitter Tolerance (IJT).
Configurable Power-down modes are available and allows for increased flexibility. Each Power-down mode enables power savings to a varying degree by selectively enabling or disabling key features. Some of the options available in Power-down mode are CSR access, PCLK, retimed SDO loop-through output, and non-retimed SDO loop-through output. Enabling or disabling each of these options will offer power consumption levels to suit the application's requirements.
The device has three other basic modes of operation which include:
- SMPTE mode
- DVB-ASI mode
- Data-Through mode
The GS3471 includes an audio de-embedder and audio clocks are internally generated. Up to eight channels (two audio groups) of serial digital audio may be extracted from the video data stream, in accordance with SMPTE ST 272-C and SMPTE ST 299.
New features and benefits vs. the existing solution:
- GS3471 has smaller package size, 9x9mm 100-ball BGA at 0.8mm ball pitch vs. GS2971A 11x11mm 100-ball BGA at 1mm ball pitch
- GS3471 has less power consumption, typical 300mW vs. GS2970A 545mW typical
- GS3471 fully supports 2K and multi-link UHD
- GS3471 has two serial input ports and one internal 2x2 mux. The deserialized signal and the loop-through signal can be independently selected. Note there is only one embedded cable EQ in the GS3471, and second input port requires an external cable EQ. The GS2971A has only one serial input
- GS3471 integrates the latest high performance cable EQ technology, providing improved cable reach at all rates
- Eight configurable power-saving modes vs. GS2971A one standby mode
Overview
Features
- 运行速率为 2.970 Gb/s、2.970/1.001 Gb/s、1.485 Gb/s、1.485/1.001 Gb/s 和 270 Mb/s
- 支持 SMPTE ST 425(A 级和 B 级)、SMPTE ST 424、SMPTE 292、SMPTE ST 259-C 和 DVB-ASI
- 集成式自适应电缆均衡器
- 2K 和 Multi-link UHD 支持
- 可配置断电模式
- 集成式时钟恢复器
- 串行数字时钟恢复或非时钟恢复环通输出
- 集成式音频解嵌器,适用于 8 通道 48 kHz 音频和音频时钟生成
- 辅助数据提取
- 并行数据总线可选 20 位或 10 位、SDR 或 DDR 速率
- 全面的错误检测和纠正功能
- 双串行数字输入缓冲器,配 2x2 MUX
- 串行环回可独立配置以选择任一输入
- 针对 270 Mb/s、1.485 Gb/s 和 2.97 Gb/s 速率进行了性能优化
- Belden 1694A 电缆典型均衡电缆长度:
- 速率为 2.97 Gb/s 时长度为 200m
- 速率为 1.485 Gb/s 时长度为 280m
- 速率为 270 Mb/s 时长度为 500m
- 多台 GS3471 设备可提供双链路/四链路 3G SDI 支持
- 输出 H、V、F 或 CEA 861 定时信号
- GSPI 主机接口
- +1.2V 数字核心电源,+1.2V 和 +1.8V 模拟电源,可选 +1.8V 或 +2.5V I/O 电源
- 工作温度范围为 -20°C 至 +85°C
- 低功耗运行——典型功耗为 300 mW
- 小型 9 mm x 9 mm 100 焊球 BGA 封装(焊球间距为 0.80 mm)
- 无铅且符合 RoHS 标准
Applications
- 监视器
- DVR
- 视频切换器
- 编辑系统
- 摄像机
- 医学成像
- 航空、军事和车载视频系统
- LED 视频墙和数字标牌应用
Packaging
- GS3471-IBE3:无铅,符合 RoHS 标准,260 颗/盘
