GS12090
Not recommended for new designs.
Please use the GS12190 for new designs.

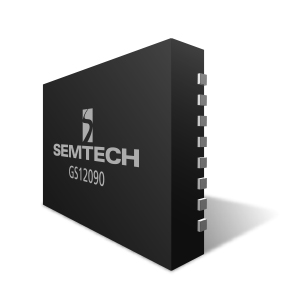

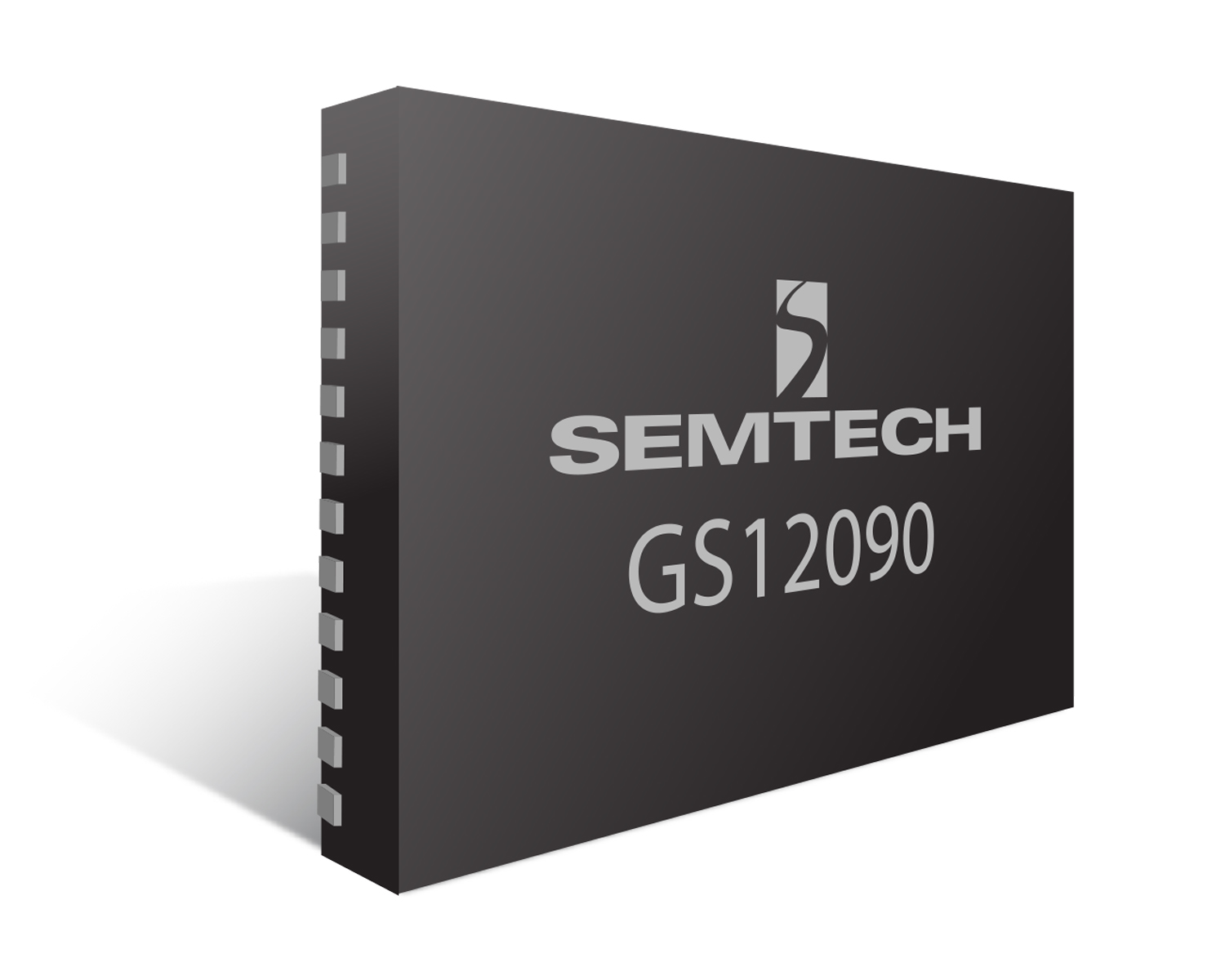

GS12090 是一款低功耗、可配置的多速率重定时型电缆均衡器/电缆驱动器,支持高达 12G UHD-SDI 的速率。它可以配置为通过 75 欧姆同轴电缆均衡或驱动信号。它具有直流恢复功能,可补偿 SMPTE 病态测试模式的直流含量。由于 GS12090 是重定时器件,因此即使在延长电缆/迹线长度的情况下也可实现极低的输出抖动。
功能
- 单个双向 75 欧姆电缆接口,配有芯片级终端
- 输入/输出符合 SMPTE ST 2082-1、ST 2081-1、ST 424、ST 292-1 和 ST 259
- 从 1 Mb/s 到 11.88 Gb/s 的多标准运行
- 支持 270 Mb/s 的 DVB-ASI 和 125 Mb/s 的 MADI 重定时
- 3D 输入信号眼图监视器
- PRBS Generator and Checker
- Automatic cable equalization. Typical equalized cable lengths of Belden 1694A cable:
- 速率为 11.88Gb/s 时长度为 60m
- 速率为 5.94Gb/s 时长度为 65m
- 160m at 2.97Gb/s
- 速率为 1.485Gb/s 时长度为 240m
- 速率为 270Mb/s 时长度为 400m
- 电缆均衡器模式功能:
- 信号丢失时手动或自动断电
- 可编程的载波检测和抑制阀值调节
- 电缆均衡器手动和自动旁路
- 电缆驱动器模式功能:
- 广泛的振幅控制
- 预加重以补偿设备输出和 BNC 之间严重的插入损耗
- 信号丢失时手动或自动断电
- 信号丢失时手动或自动静音或禁用
- 迹线均衡器功能:
- 集成式 100 欧姆差分输入终端
- 信号丢失时手动或自动断电
- 可调节载波检测阈值
- 从 1.2 V 到 2.5 V CML 逻辑的直流耦合
- 迹线均衡以补偿 11.88 Gb/s 速率时最多 20 英寸的 FR4
- Automatic input offset compensation
- 迹线驱动器功能:
- 集成式 100 欧姆差分输出终端
- 从 1.2 V 到 2.5 V CML 逻辑的直流耦合
- 迹线驱动器数据输出以补偿 11.88 Gb/s 速率时最多 20 英寸的 FR4
- 信号丢失时手动或自动静音或禁用
- CDR 功能:
- 手动或自动速率模式
- 手动或自动重定时器旁路
- 宽频带环路带宽控制
- 以下列数据速率进行重定时:125Mb/s、270Mb/s、1.485Gb/s、2.97Gb/s、5.94Gb/s 和 11.88Gb/s。其中包括 f/1.001 速率。
- 其他功能:
- 1.8 V 模拟和数字核心单电源
- 2.5 V 电缆驱动器输出电源
- 1.2 V、1.8 V 或 2.5 V 迹线驱动器输出电源
- GSPI 串行控制和监控接口
- 四个可配置的 GPIO 引脚,可用于控制或状态监控
- 工作温度范围宽:-40℃ 至 +85℃
- 小型 6 mm x 4 mm 40 引脚 QFN 封装
- Pb-free/Halogen-free/RoHS & WEEE compliant package
- 与 GS3590 的引脚兼容
- 下一代 3D/2D HFR HDTV 和 2K D-Cinema、UHDTV1 和 4K D-Cinema 终端设备:摄像机、监视器、切换器等。
- 用于为 UHDTV1、UHDTV2、4D D-Cinema 和 3D HFR 以及 HDR 制作图像格式提供支持的下一代 3G、6G 和 12G UHD-SDI 基础设施。
