GS12241

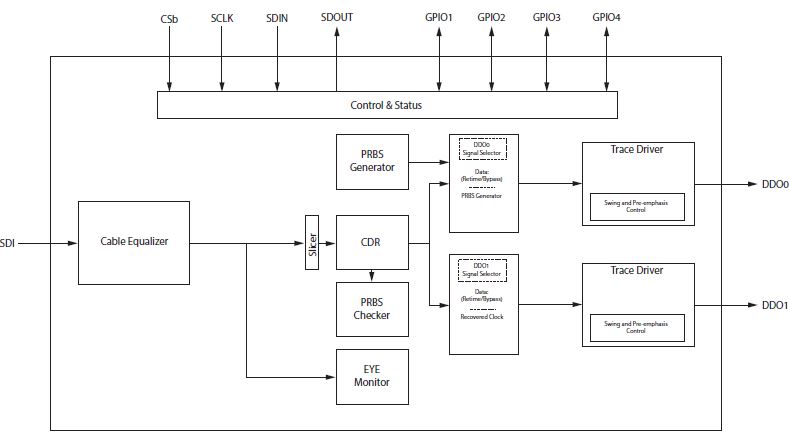

GS12241 是一款低功耗、多速率的重定时电缆均衡器,支持速率高达 12G UHD-SDI。它专用于均衡和修复从速率为 12G 的 80 米同轴电缆中接收的信号,补偿 SMPTE 病态信号的直流含量,以及对输入数据进行重定时。本器件支持 SMPTE ST 2082-1 (12G UHD-SDI)、ST2081-1 (6G UHD-SDI)、ST 424 (3G SDI)、ST 292-1 (HD-SDI) 以及 ST 259 (SD-SDI) 信号,并且经过优化,可在 11.88 Gbps 的速率下实现卓越性能。除了标准的 SMPTE 速率,此器件还支持对速率为 270 Mbps 的 DVB-ASI 和速率为 125 Mbps 的 MADI 进行重定时。两个迹线驱动器具有可高度配置的预加重和摆幅控制,用于补偿远距离跟踪和连接器器丢失。
功能
- 带片上终端的 75 欧姆电缆输入接口
- 输入/输出符合 SMPTE ST 2082-1、ST 2081-1、ST 424、ST 292-1 和 ST 259
- 从 1 Mb/s 到 11.88 Gb/s 的多标准运行
- 除了标准的 SMPTE 速率,该设备还支持对速率为 270 M/s 的 DVB-ASI 和速率为 125 Mb/s 的 MADI 进行重定时
- 3D 输入信号眼图监视器
- PRBS 生成器和检验器
- 自动电缆均衡 — Belden 1694A 电缆典型均衡电缆长度:
- 速率为 11.88Gbps 时长度为 80m
- 速率为 5.94Gbps 时长度为 100m
- 速率为 2.97Gbps 时长度为 190m
- 速率为 1.485Gbps 时长度为 260m
- 速率为 270Mbps 和 125Mbps 时长度为 450m
- Cable equalizer mode features:
- Automatic power down on loss of signal
- 可编程的载波检测和抑制阀值调节
- 对不兼容的来源进行可编程的启动摆幅补偿
- Manual and automatic cable equalizer bypass
- Trace driver features:
- 集成式 100 欧姆差分输出终端
- 扩展输出直流耦合支持 1.2 V 至 2.5 V 输出电源范围
- 迹线驱动器数据输出以补偿 11.88 Gb/s 速率时最多 20 英寸的 FR4
- 手动/自动重定时器旁路
- 信号丢失时手动或自动静音或禁用
- CDR 功能:
- 手动或自动速率模式
- 宽环路带宽控制
- 以下列数据速率进行重定时:125Mbps、270Mbps、1.485Gbps、2.97Gbps、5.94Gbps 和 11.88Gbps——其中包括 f/1.001 速率
- Single 1.8V power supply for analog and digital core
- GSPI 串行控制和监控接口
- 四个可配置的 GPIO 引脚,可用于控制或状态监控
- 工作温度范围宽:-40℃ 至 +85℃

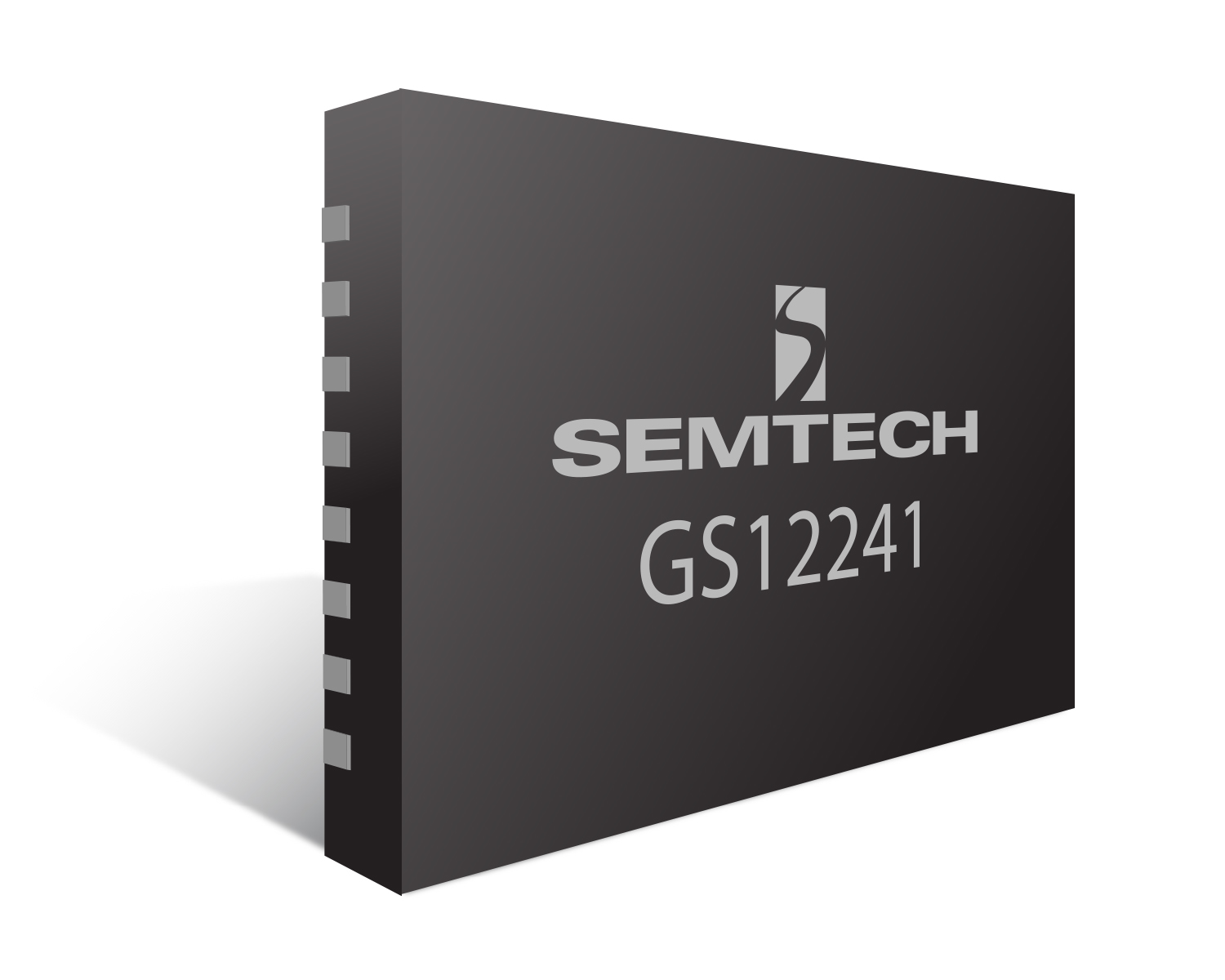

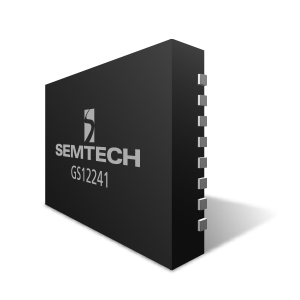

- 小型 6 mm x 4 mm 40 引脚 QFN 封装
- 引脚与 GS12141、GS12142 和 GS3241 兼容
- 封装无铅/无卤素/符合 RoHS 和 WEEE 标准
- 下一代 3D/2D HFR HDTV 和 2K D-Cinema、UHDTV1 和 4K D-Cinema 终端设备:摄像机、监视器、切换器等。
- 用于为 UHDTV1、UHDTV2、4D D-Cinema 和 3D HFR 以及 HDR 制作图像格式提供支持的下一代 3G、6G 和 12G UHD-SDI 基础设施。
应用
