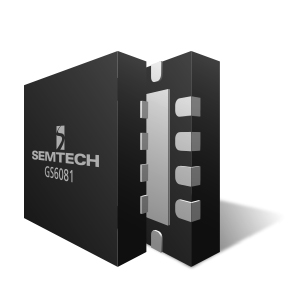

GS6081
The GS6081 is a high-speed BiCMOS integrated circuit designed to drive one to four 75 Ohms coaxial cables. The GS6081 may drive data rates up to 5.94Gb/s and provides two selectable slew rates in order to achieve compliance to SMPTE ST 424, SMPTE ST 292 and SMPTE ST 259.
功能
- 支持从 270Mb/s 到 5.94Gb/s 的数据速率
- SMPTE ST 424, SMPTE ST 292 and SMPTE ST 259 compliant
- Supports DVB-ASI at 270Mb/sWide common-mode range input buffer
- 100mV 灵敏度
- supports DC-coupling to industry-standard differential logic
- on-chip 100 Ohms differential data input termination
- 输入信号迹线均衡
- Dual differential coaxial-cable-driving outputs
- selectable slew rates
- adjustable output swing from 500mVpp to 1040mVpp
- independent disable controls for each output
- 强大的信号感测功能
- Excellent output eye quality
- +3.3V 或 +2.5V 电源运行
- 135mW 功耗（+2.5V 电源）
- 工作温度范围：-40°C 至 +85°C
- 小型 QFN 封装 (4 mm x 4 mm)
- new dual-output pin out
- use the GS6080 for a single-output variant that is drop-in compatible to the GS2988
- 无铅且符合 RoHS 标准
- 6G UHD-SDI, SMPTE ST 424, SMPTE ST 292 and SMPTE ST 259 coaxial cable serial digital interfaces
应用
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
