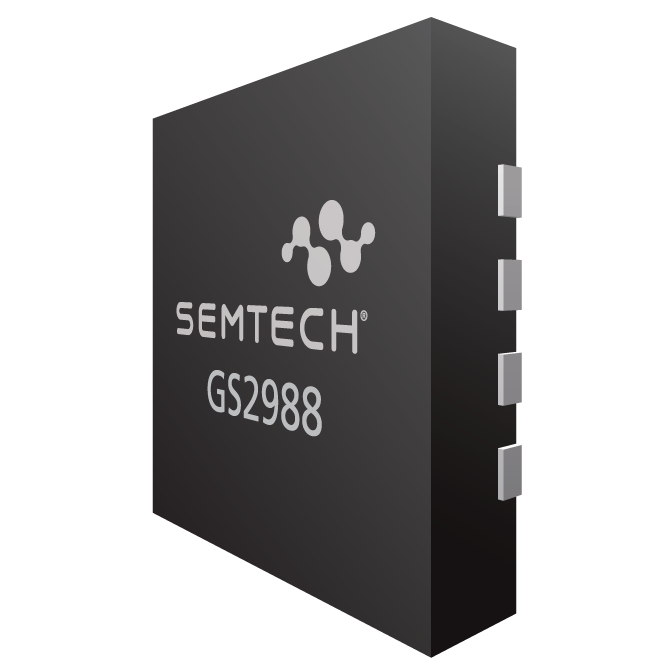

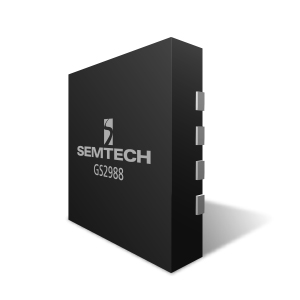

GS2988
The GS2988 is a SMPTE-compatible, dual-output cable driver which supports data rates from 270Mb/s to 2.97Gb/s. The GS2988 is a high-speed BiCMOS integrated circuit designed to drive one or two 75Ω coaxial cables.
GS2988 可以驱动高达 2.97Gbps 的数据速率，并提供两种可选的转换速率，以符合 SMPTE 424M、SMPTE 292M 和 SMPTE 259M。GS2988 接受行业标准的差分输入电平，包括 LVPECL 和 CML。
输入迹线均衡可补偿高达 10 英寸的 FR4 迹线损耗。可以使用 EQ_EN 引脚禁用此功能。DISABLE 引脚关断输出驱动器，使串行数据输出处于高阻抗状态。GS2988 使用外部偏置电阻器，具有可调节的输出摆幅。单端输出摆幅可在 500mVpp 至 1800mVpp 范围内调节。输出信号感测功能（OSP 引脚）指示 GS2988 的输出端是否存在有效信号。
GS2988 可由 3.3V 或 2.5V 电源供电。使用 2.5V 电源时，功耗通常为 125mW。
GS2988 为无铅设备，包封复合物中不含有卤系阻燃剂。此部件和所有同类子部件均符合 RoHS 要求。
GS2988 与 Semtech 的 GS6080 6G UHD-SDI 电缆驱动器插槽兼容。
功能
- 兼容 SMPTE 424M、SMPTE 292M 和 SMPTE 259M
- 支持从 270Mbps 到 2.97Gbps 的数据速率
- 输入信号迹线均衡
- 宽共模范围输入缓冲器
- 100mV 灵敏度
- 支持直流耦合至工业标准差分逻辑
- 片上 100 欧姆差分数据输入终端
- Supports DVB-ASI at 270Mbps
- 差分同轴电缆驱动输出
- 可选压摆率
- 从 500mVpp 到 1800mVpp 的可调输出摆幅
- DISABLE control
- 强大的输出信号感测功能
- Excellent output eye quality
- Power supply operation at 3.3V or 2.5V
- 125mW 功耗（2.5V 电源）
- 工作温度范围：-40°C 至 +85°C
- 小型 QFN 封装 (4 mm x 4 mm)
- 插槽与 GS2978 兼容
- 无铅且符合 RoHS 标准
- Audio De-embedders
- 音频嵌入器
- 摄像机
- 摄像机控制单元
- 分配放大器
- 编码器/解码器
- 格式检测器
- Master Control Switchers
- Monitors, Multiviewers
- 生产切换器
- Routers
- SMPTE 424M、SMPTE 292M 和 SMPTE 259M 同轴电缆串行数字接口
- 测试和测量设备
- 上/下/交叉变频器
- 视频采集卡
- 视频服务器
- 磁带录像机
应用
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
