Semtech GS12081

The GS12081 is a low-power, multi-rate, cable driver supporting rates up to 12G UHD-SDI. It is designed to receive 100Ω differential input signals, and transmit the signal over 75Ω coaxial cables. The 100Ω trace input supports up to 17dB of insertion loss.
The device supports SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), ST 424 (3G SDI), ST 292-1 (HD-SDI) and ST 259 (SD-SDI). In addition to standard SMPTE rates, the device also supports DVB-ASI at 270Mb/s, MADI at 125Mb/s, and 10GbE.
The two cable drivers have highly configurable pre-emphasis and swing controls to compensate for long trace and connector losses. Additionally, automatic and user selectable output slew rate control is provided for each cable driver output.
Overview
Features
- Dual non-inverted 75Ω cable interface with on-chip termination与片上+V19端对接的双路非反向75Ω电缆
- SMPTE ST 2082-1, ST 2081-1, ST 424, ST 292-1 and ST 259 compliant input/output符合SMPTE ST 2082-1、ST 2081-1、ST 424、ST 292-1和ST 259标准输入/输出
- Multi-standard operation from 1Mb/s to 11.88Gb/s符合多重标准,运行速率从1Mb/s至11.88Gb/s
- Cable driver features:电缆驱动器的特征:
- Wide swing control宽摆控制
- Pre-emphasis to compensate for significant insertion loss between device output and BNC预加重以补偿设备输出和视频输入(BNC)之间重大的插入损失
- Manual output slew rate control手动输出转速控制
- Manual or automatic Mute or disable on LOS信号丢失时(LOS),手动或自动静音,或禁用
- Trace equalizer features:跟踪均衡器的特征:
- Integrated 100Ω, differential input termination集成的100Ω的差分输入终端
- Automatic power down on loss of signal信号丢失时自动断电
- Adjustable carrier detect threshold可调载波检测阈值
- DC-coupling from 1.2V to 2.5V CML logic从1.2V到2.5V CML逻辑的DC耦合
- Trace equalization to compensate for up to 15” FR4 at 11.88Gb/s在11.88Gb/s时,跟踪均衡补偿高达15英寸FR4的跟踪损失
- Input offset compensation输入偏移补偿
- Additional Features:附加特征:
- Single 1.8V power supply for analog and digital core用于模拟和数字内核的单个1.8V电源
- 2.5V or 3.3V for cable driver output supply用于电缆驱动器输出的2.5V或3.3V电源
- GSPI serial control and monitoring interfaceGSPI串口控制和监控接口
- Four configurable GPIO pins for control or status monitoring用于控制或状态监控的4个可配置的GPIO引脚
- Wide Operating temperature range: -40°C to +85°C工作温度范围:-40度至+85度宽工作温度范围:-40度至+85度

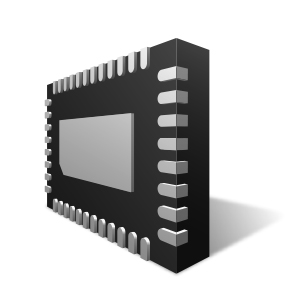

- Small 6mm × 4mm 40-pin QFN小尺寸40引脚6mm*4mm QFN封装
- Pb-free/Halogen-free/RoHS and WEEE compliant package无铅/无卤素/符合RoHS和WEEE标准的封装
- Pin compatible with the GS12181, GS12182, GS12281, and GS3281与GS12182、GS12281和GS3281引脚兼容
