GS12170

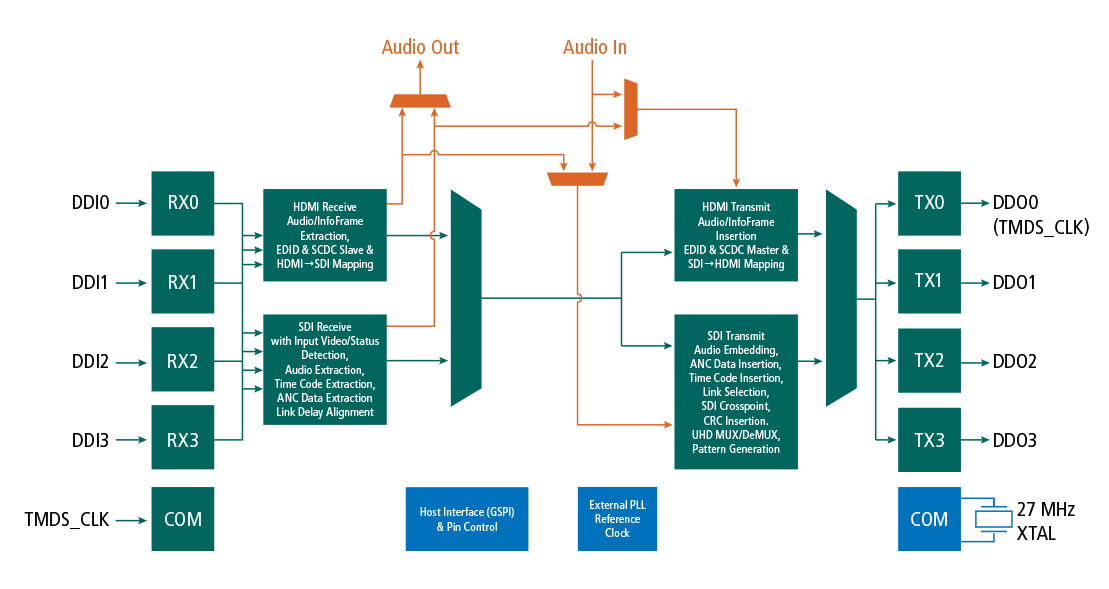

The GS12170 is a fully featured SDI/HDMI bridge chip (including backwards compatibility with the GS12070 UHD-SDI Gearbox) for SDI link conversion applications. The GS12170 can be configured to operate in one of three modes: SDI to HDMI bridge mode, HDMI to SDI bridge mode or SDI gearbox mode.
该器件完全支持 12Gbps 下从 HD-SDI (ST 292) 到 UHD-SDI (ST 2082-1) 的 SDI 接口标准,包括这些速率下的所有 Multi-Link SDI 标准。当配置用于 HDMI 桥接时,GS12170 完全支持 HDMI 2.0 标准,最高支持 4Kp60 4:2:2 格式。
The GS12170 is the ideal solution for chip-to-chip connectivity using TMDS signaling for UHDTV products requiring a 12Gbps UHD-SDI interface. For example, add a 12Gbps UHD-SDI input interface to a UHDTV monitor simply by adding the GS12170 in SDI to HDMI Mode, with TMDS connection directly into off-the-shelf image processing ASICs.
For applications requiring multi-channel audio, the GS12170 includes a full 16-channel audio de-embedding and embedding feature. Up to 16 channels of digital audio at 48kHz sampling, or up to eight channels at 96kHz sampling, can be extracted from the input video, and output on dedicated balls in AES/EBU or I2S serial digital formats. Existing audio is also simultaneously re-embedded in the selected output interface format. Users may also choose to insert up to eight channels of new audio using dedicated audio input balls.
In HDMI to SDI Mode, the GS12170 can extract all HDMI InfoFrames, including HDR meta data. Video payload information is automatically converted to SMPTE ST 352 packets. Similarly, in SDI to HDMI Mode, SDI SMPTE ST 352 packets are extracted and converted to equivalent InfoFrames. All InfoFrame and ancillary data packets can be read via the GSPI host interface. Users can also choose to insert new SDI ancillary data packets via the GSPI.
In SDI gearbox mode, the device will automatically reorder the output serial stream according to the received ST 352 packets, and may also duplicate outputs to unused serial output ports, or route any input channel to an unused output.
The device will also automatically compensate for up to 400ns of skew between Multi-Link SDI inputs. This aids in any lane-to-lane variance introduced by cable mismatch or upstream routing and distribution equipment.
For optimal SDI performance, the GS12170 is designed to interface directly with Semtech’s UHD-SDI equalizers and cable drivers. For HDMI connectivity, the TMDS inputs and outputs are designed for direct chip-to-chip connectivity. The device can be connected to physical HDMI connectors using an HDMI re-driver device.

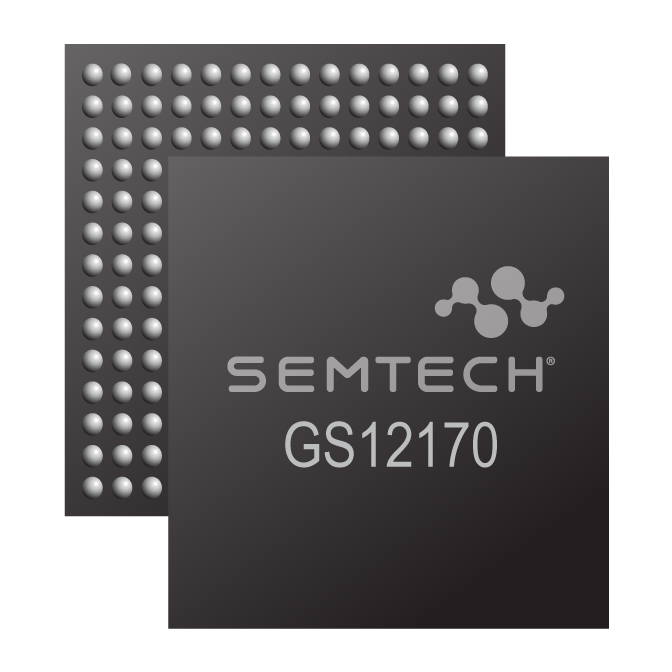

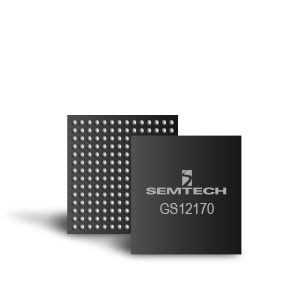

The GS12170 is packaged in a space-saving 12 mm by 12 mm 196-ball BGA package, and offers low power operation of less than 2W typically.
This makes the device ideal for adding UHD-SDI interfaces to existing HDMI 2.0 based UHDTV products, and for low-cost SDI/HDMI converters and extenders.
功能
- 在 HDMI 2.0 之间桥接的完全标准兼容 SDI 接口
- 在 10 位 4:2:2 采样时支持高达 60Hz 的 4K 视频格式
- 在单链路和多链路 SDI 接口之间转换,从 HD-SDI 至 12Gbps UHD-SDI
- 三种操作模式:
- SDI 转 HDMI 桥接模式
- HDMI 转 SDI 桥接模式
- SDI to SDI gearbox mode
- 频率为 48kHz 或 96kHz 时支持多达 16 个通道的数字音频去嵌入和嵌入
- Simultaneous de-embedding and embedding in all modes of operation
- 专用 AES/EBU 或 I2S 串行数字音频输入和输出
- HDMI InfoFrames 的提取和插入
- SDI 辅助数据包的提取和插入
- 提取和插入时间码 (TC) 数据包
- SDI Gearbox 模式还支持 GS12070 UHD-SDI Gearbox 的所有功能和特性
- Automatic and manual handling of SMPTE ST 352 packets
- 多链路 SDI 输入的自动偏移补偿
- 多链路 SDI 输入的自动输入链路顺序处理
- Four 100Ω differential inputs with input trace equalization up to 12dB
- 四个 100Ω 差分输出,可单独选择输出摆幅调节
- 单个 27MHz 参考时钟/晶体输入
- Gennum 串行外围设备接口 (GSPI) 串行控制和监控接口
- 典型功率 <2W
- 12 mm x 12 mm 196 焊球 BGA 封装(焊球间距为 0.8 mm)
- 无铅、无卤素且符合 RoHS / WEEE 标准
- UHDTV 监视器和显示器
- UHDTV 摄像机和便携式摄像机
- SDI/HDMI 转换器
- HDMI 扩展器
- SDI I/O 适配器
- SDI/HDMI 交换器和路由器
应用
封装
- BGA-196
订购代码
- GS12170-IBE3,189 颗/盘
