概览

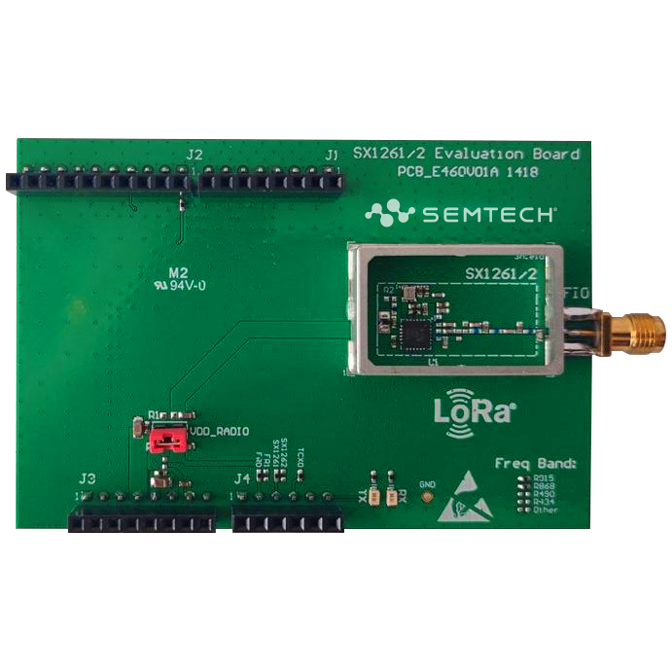

This Mbed shield features Semtech's LoRa® SX1261 and is a switchless design configured for 868MHz for Europe and 915MHz for North America frequency bands.功能
- 基于 SX1261
- PCB 层：4
- 32MHz 参考时钟：TCXO
- Region: Europe and North America
- Frequency Band: 868MHz and 915MHz
- Tx Out Power: 14dBm PCB
- Version Number: E460V01A
- RF Matching: Switchless design
- Single RF Module Part Number: SX1261MB1LDCS (Reference design only)
订购代码
- Reference design only
PB Free/ROHS
Learn More →
| 文档 | Release Date | 键入 |  |
|---|---|---|---|
| AN1200-79: SX126x Switchless Design | 2024-02-23 | | |
| 文档 | Release Date | 键入 | |
|---|---|---|---|
| SX1261/2 Switchless Reference Design | 2024-02-23 | ZIP | |
Inventory
| Product | 国家/地区 | 经销商 | Qty | Buy |
|---|
