概览
The SMDAxxC-5 series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
封装

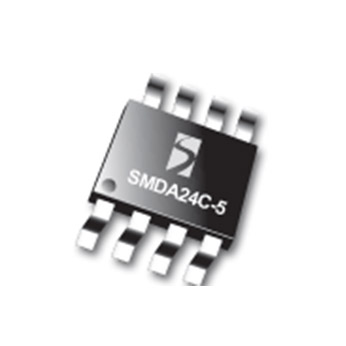

- SO-8
订购代码
- SMDA24C-5.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel; Use SMDA24C-7.TBT instead
PB Free/ROHS
Learn More →功能
- Protects 5 I/O lines
- Working voltage: 24 V
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5（雷电）12 A (8/20 µs)
- Small SO-8 surface-mount package
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SMDA24C-5 Datasheet | 2019-11-06 | | |
应用
- RS-232 and RS-422 data lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- 外围设备
- Set-top boxes
- Serial and parallel ports
