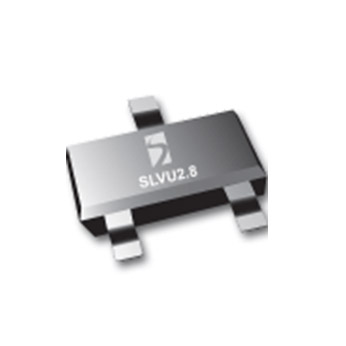

SLVU2.8
The SLV series of transient voltage suppressors are designed to protect low voltage, state-of-the-art CMOS semiconductors from transients caused by electrostatic discharge (ESD), cable discharge events (CDE), lightning and other induced voltage surges.
功能
- 每个设备保护一条单向线路
- Two devices protect two high-speed line pairs
- 400 Watts peak pulse power (tp = 8/20 µs)
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 24 A (8/20 µs)
- 低电容
- 小漏电流
- Low operating and clamping voltages
- Solid-state EPD TVS process technology
- Lead-free, RoHS and WEEE compliant
- 10/100 以太网
- LAN/WAN equipment
- Switching systems
- Desktops, servers, notebooks, & handhelds
- Laser diode protection
- Base stations
应用
封装
- SOT-23
- 3000 pcs. Tape & Reel
订购代码
- SLVU2.8.TCT
