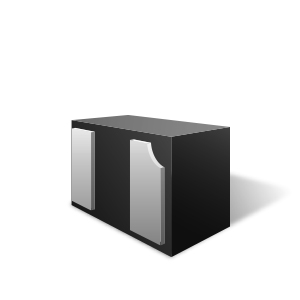

RClamp1521P
The RailClamp family is a series of ultra low capacitance Transient Voltage Suppressors (TVS) designed to protect high speed data interfaces.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- 超小型封装 (1.0 x 0.6 x 0.5 mm)
- 保护一条数据或 I/O 线路
- 低电容：0.3pF（典型值）
- 钳位电压低
- Low operating voltage: 15V
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- 蜂窝手机和配件
- USB Ports
- PCI Express
- Serial ATA
应用

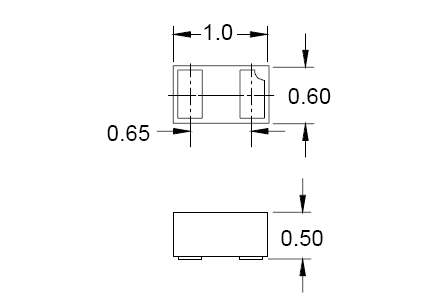

封装

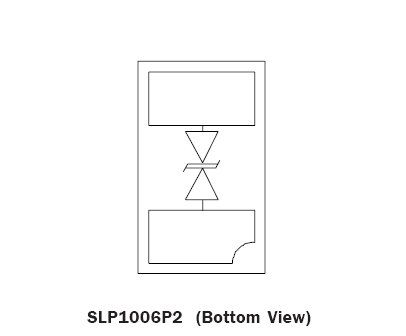

- SLP1006P2
- 3000 pcs. tape & reel
订购代码
- RClamp1521P.TCT
