RClamp0561Z
RClamp®0561Z is an ultra low capacitance ESD protection device specifically designed to protect highspeed differential lines. It offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation
功能
- ESD 耐受电流高
- IEC 61000-4-2 (ESD) 15kV (air), 12kV (contact)
- Ultra-Low capacitance: 0.12pF Typical
- Very small PCB area
- Protects one high-speed data line
- 工作电压：5.5V
- Low reverse leakage current: 50nA max at VR=5.5V
- Large operating bandwidth: 15GHz
- 固态硅雪崩技术
- HDMI 1.4 and HDMI 2.0
- USB 3.0 和 USB 3.1
- USB Type-C
- Thunderbolt
- MIPI/MDDI
- 10GbE
- DVI
应用
封装

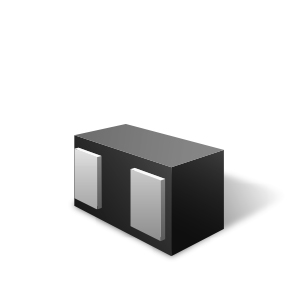

- SGP0603P2X3 Package - 0.62 x 0.32 x 0.30 mm , Tape and Reel
订购代码
- RClamp0561Z.TFT - Pb-Free, Halogen Free, RoHS/WEEE Compliant 15,000 pcs
- RClamp0561Z.TNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant 10,000 pcs
Pb(Lead)-Free/RoHS-Green Info
