概览

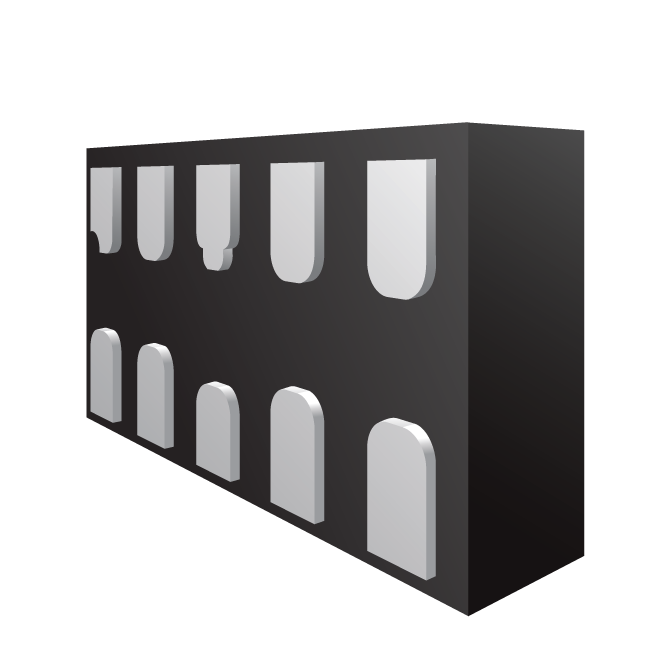

RailClamps® are low capacitance TVS arrays designed to protect high speed data interfaces. RClamp®0554T has a typical capacitance of only 0.28pF between I/O pins. They may be used to meet the ESD immunity requirements of IEC 61000-4-2. Each device is designed to protect four lines (two differential pairs).
功能
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) :±24kV (air) , ±18kV (contact)
- IEC 61000-4-5 (Lightning) 5A (8/20μs)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- Package design optimized for high speed lines
- Flow through design
- Protects Four I/O lines
- Low capacitance: 0.28pF typical (I/O to I/O)
- 钳位电压低
- Low operating voltage: 5V
- Solid-State Silicon-Avalanche Technology
应用
- Cell Phones and Accessories
- HDMI
- MDDI Ports
- USB 3.0
- LVDS
- eSATA
- PCI Express
