Semtech LC04-6
双通道低电容 TVS 阵列，用于电信线路卡应用
The LC04-6 has been specifically designed to protect sensitive components which are connected to high-speed telecommunications lines from over voltages caused by lightning, electrostatic discharge (ESD), cable discharge events (CDE), and electrical fast transients (EFT).
概览
Features
- Transient protection for high-speed data lines to
- Bellcore GR-1089 IPP = 70 A (10/1000 µs)
- Bellcore GR 1089 IPP = 100 A (2/10 µs)
- ITU K.20 IPP=100A (5/310 µs)
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 100 A (8/20 µs)
- Protects two tip-and-ring line pairs
- Low capacitance for high-speed interfaces
- High surge capability
- 钳位电压低
- 固态硅雪崩技术
应用
- T1/E1 line cards
- Base stations
- WAN equipment
- CSU/DSU
- Multiplexers
- Routers
- ISP equipment
- Customer premise equipment
Packaging

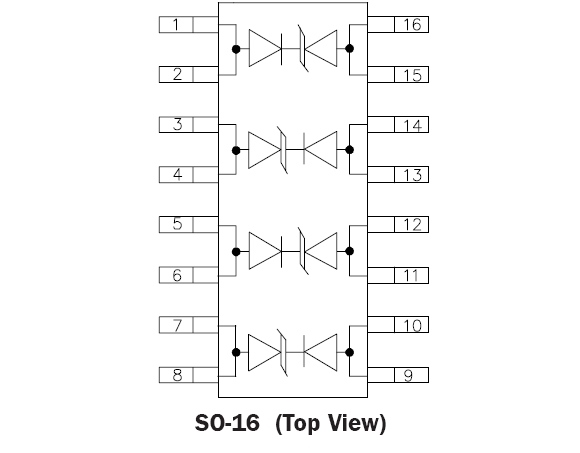

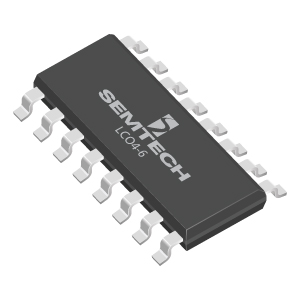

SO-16
Order Codes
- LC04-6.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs. Tape & Reel
Diagrams and Specs

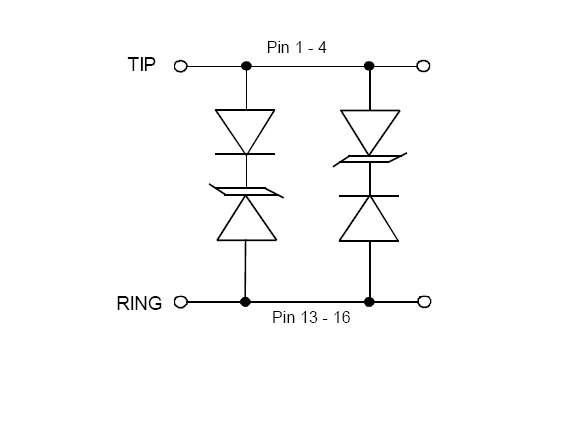

Block Diagram
Click diagram to enlarge
