LC01-6
The LC01-6 transient voltage suppressor is designed to protect components which are connected to high speed telecommunication lines from voltage surges caused by lightning, electrostatic discharge (ESD), and electrical fast transients (EFT).
功能
- 1500 watts peak pulse power (tp = 10/1000 µs)
- Transient protection for high speed data lines to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (Lightning) 95 A (8/20 µs)
- Telcordia (Bellcore) 1089 (outer-building),
- 100 A (10/1000 µs), 500 A (2/10 µs)
- FCC Part 68, 200 A (10/160 µs)
- ITU K.21, 100 A (5/310 µs)
- ITU K.20, 200 A (5/310 µs)

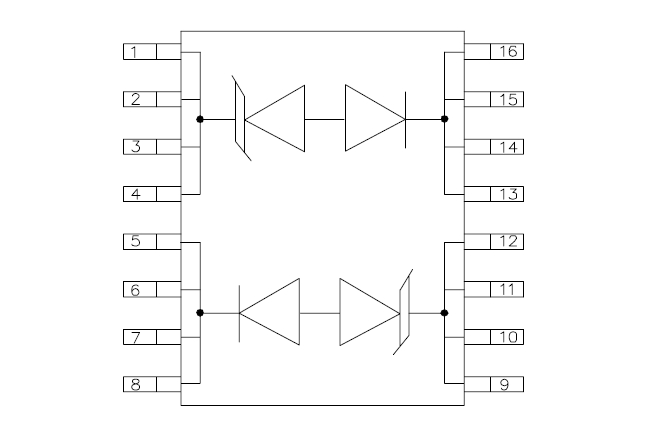

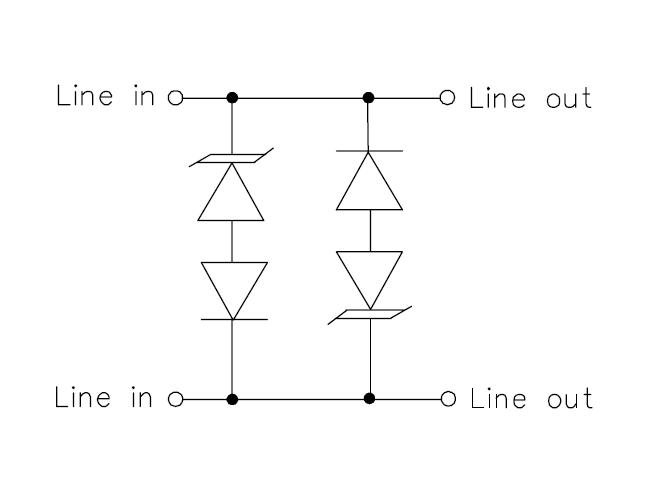

- Differential protection for one tip-and-ring line pair
- Low capacitance for high speed interfaces
- Low operating and clamping voltage
- Integrated structure saves board space and increases reliability
- 固态硅雪崩技术
- Lead-free, RoHS and WEEE compliant
- T1/E1 line cards
- Base stations
- WAN interfaces
- xDSL interfaces
- CSU/DSU equipment
应用
封装

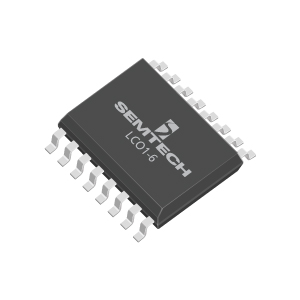

- SO-16W
- 1,000 pcs. Tape & Reel
订购代码
- LC01-6.TDT
Pb(Lead)-Free/RoHS-Green Info
（-40°C 至 +85°C / 4000 循环）
（50°C，4000 小时）
