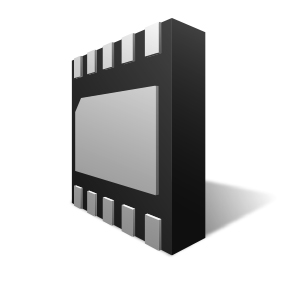

RClamp3304NA
RailClamp® low capacitance TVS array is designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE Cable Discharge Events), and Lightning.
功能
- Transient protection for high-speed data lines to
- IEC 61000-4-2 (ESD) 25kV (air), 15kV (contact)
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning) 25A (8/20μs)
- Array of surge rated diodes with internal TVS Diode
- Small package saves board space
- 保护最多四条 I/O 线路
- 低电容 (< 5pF)，适用于高速接口
- Low leakage current and clamping voltage
- 低工作电压：3.3V
- 固态硅雪崩技术
- 10/100/1000 Ethernet
- RJ-45 Connectors
- T1/E1 Secondary Protection
- T3/E3 Secondary Protection
- 模拟视频
应用
封装
- SLP2626P10
订购代码
- RClamp3304NATCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant
Pb(Lead)-Free/RoHS-Green Info
Datasheets & Documentation
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | 国家/地区 | Qty | Buy | 经销商 |
|---|
资源
To see more videos Videos
