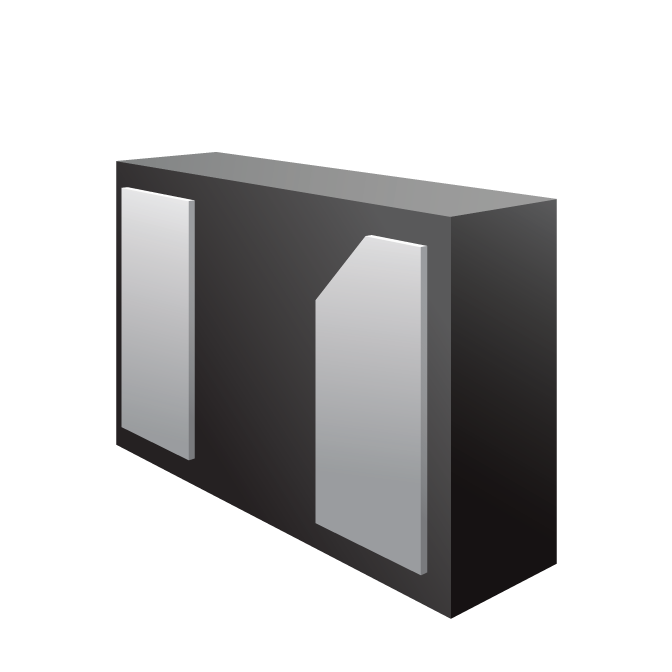

uClamp2221ZV
μClamp® series of transient voltage suppressor (TVS) arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD). They feature large cross-sectional area junctions for conducting high transient currents. They offer desirable characteristics for board-level protection including fast response time, low operating and clamping voltage and no device degradation.
功能
- 高 ESD 耐受电压：符合 IEC 61000-4-2 标准，±30kV（接触）和 ±30kV（空气）
- High peak pulse current capability: 14A (tp = 8/20μs)
- Ultra-small package (1.0 x 0.6 x 0.25mm)
- 保护一条 I/O 或电源线路
- 低 ESD 钳位电压
- Working voltage: ±21.5V
- 固态硅雪崩技术
- Pb-free, Halogen-free, RoHS/WEEE-compliant
- Cellular handsets & accessories
- Battery protection
- Notebooks & handhelds
- Audio lines
应用
封装
- DFN 1.0 x 0.6 x 0.25mm 2-Lead – 15,000 pcs
