概览

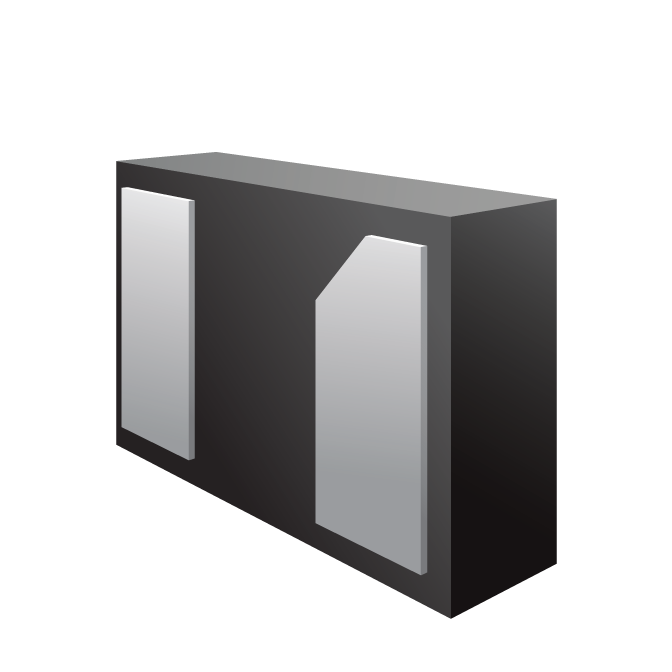

uClamp2011ZV is a bidirectional transient voltage suppressor (TVS) specifically designed for single power line protection up to +20V. It features large cross-sectional area junctions for conducting high transient currents while occupying minimal board space in a slim 1006(mm) package. Desirable characteristics for board level protection include fast response time, low operating and clamping voltage, and no device degradation. Protection characteristics are highlighted by high surge capability (30A, tp = 8/20μs), low surge clamping (<31V at 30A, tp = 8/20μs) and high ESD withstand voltage (IEC 61000-4-2 Level 4, ±30kV air and contact).
功能
- High ESD withstand voltage: ±30kV (Contact) and ±30kV (Air) per IEC 61000-4-2
- High peak pulse current capability: 30A (tp = 8/20μs)
- Small package(1.0 x 0.6 x 0.25mm)
- 保护一条线路
- 低 ESD 钳位电压
- Working voltage: +20V
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP2011ZV Datasheet | 2024-04-20 | | |
应用
- Cellular handsets and accessories
- Battery protection
- Notebooks and tablets
- Vbus
- USB type-C sideband use and configuration channels
