概览

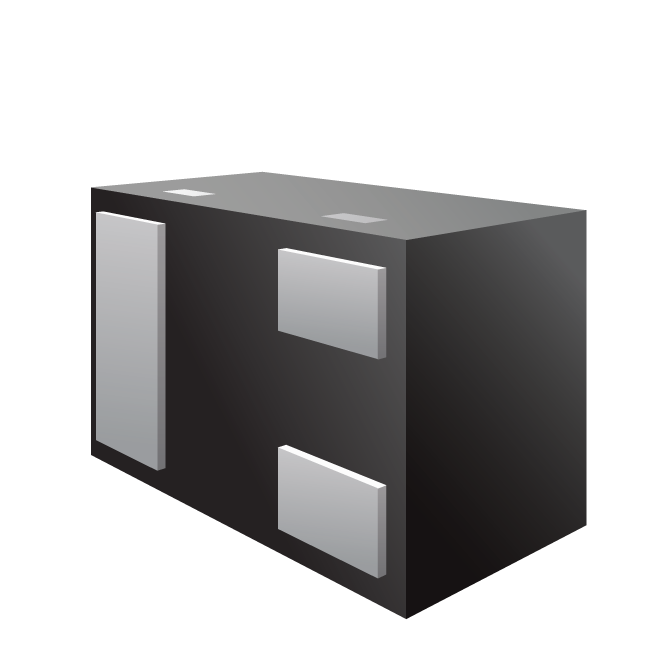

The μClamp series of transient voltage suppressor (TVS) arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD). They feature large cross-sectional area junctions for conducting high transient currents. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation. The μClamp1002p protects two unidirectional lines operating at 10V and may be used to meet the ESD immunity requirements of IEC 61000-4-2, Level 4 (±30kV air, ±30kV contact discharge). The combination of small size and high ESD and surge capability makes them ideal for use in applications such as cellular phones, battery protection and VBUS protection.
功能
- Transient protection to:
- IEC 61000-4-2 (ESD): ±30kV (contact), ±30kV (air)
- IEC 61000-4-5 (lighting): 12A (8/20μS)
- Working voltage: 10V
- 保护一条 I/O 或电源线路
- Dynamic resistance: 0.19Ohms (Typ)
- 低 ESD 钳位电压
- 固态硅雪崩技术
| 文档 | Release Date | Type |  |
|---|---|---|---|
| UCLAMP1002P Datasheet | 2023-11-07 | | |
应用
- Cellular handsets and accessories
- Voltage bus protection
- Battery protection
- Notebooks and handhelds
