uClamp0545T
μClamp TVS diodes are designed to protect sensitive electronics from damage or latch-up due to ESD. They are designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and other portable electronics. They feature large cross-sectional area junctions for conducting high transient currents. This device offers desirable characteristics for board level protection including fast response time, low operating and clamping voltage, and no device degradation.
功能
- High ESD withstand Voltage: +/-12kV (Contact) per IEC 61000-4-2
- Very small PCB area: 0.7mm2
- Protects up to five data lines
- Low reverse current: <10nA typical (VR=5V)
- 工作电压:+/- 5V
- Low capacitance: 4pF typical
- Low dynamic resistance: 0.70 Ohms (Typ)
- 固态硅雪崩技术
- 蜂窝手机和配件
- Keypads, Side Keys, Audio Ports
- LCD Connectors
- 数字线路
- 模拟视频
应用

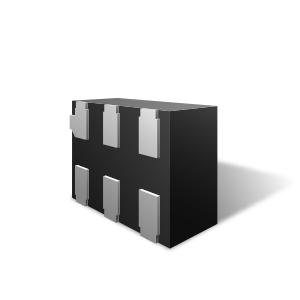

封装
- SLP1007N6T
订购代码
- uClamp0545T.TNT - Pb-Free, Halogen Free, RoHS/WEEE Compliant
