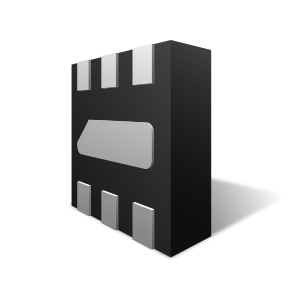

uClamp0506T
The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace single line devices such as multilayer varistors (MLVs) in space constrained applications such as cell phones, notebook computers, and other portable electronics.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small package
- Protects six data lines
- 钳位电压低
- Working voltage: 5V
- Low capacitance (10pF)
- 固态硅雪崩技术
- 无铅、无卤素、符合 RoHS/WEEE 标准
应用
封装
- SLP1313P6T
- 3000 pcs Tape and Reel
订购代码
- uClamp0506T.TCT
Pb(Lead)-Free/RoHS-Green Info
