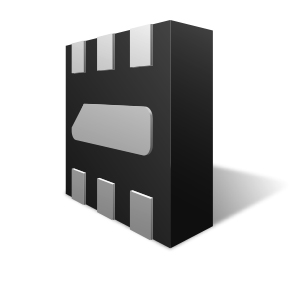

uClamp0505T
The μClamp series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD. It is designed to replace single line devices such as multilayer varistors (MLVs) in space constrained applications such as cell phones, notebook computers, and other portable electronics.
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV（空气），±8kV（接触）
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- Ultra-small package
- Protects five data lines
- 钳位电压低
- Working voltage: 5V
- Low capacitance (10pF)
- 固态硅雪崩技术
应用
封装

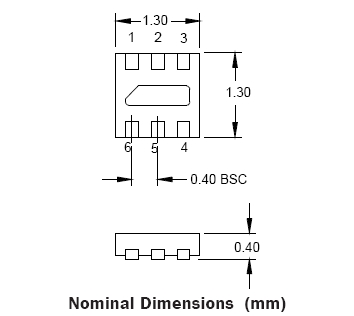

- SLP1313P6T
订购代码
- uClamp0505T.TCT：无铅、无卤素且符合 RoHS/WEEE 标准，3000 颗，卷带包装
