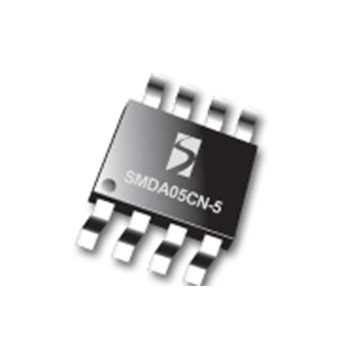

SMDA05CN-5
The SMDAxxCN-5 series of transient voltage suppressors are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning.
功能
- 300 watts peak pulse power (tp = 8/20 µs)
- Protects up to 5 bidirectional lines
- Working voltage: 5 V
- 高速数据线路 ESD 防护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5 (lightning) 12 A (8/20 µs)
- 小漏电流
- Low operating voltage
- 钳位电压低
- 固态硅雪崩技术
- Small SO-8 surface-mount package
- Lead-free, RoHS and WEEE compliant
- RS-232 data lines
- RS-423 data lines
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- 外围设备
- Set-top boxes
应用
封装
- SO-8
- 500 pcs. Tape & Reel - Min order req.
订购代码
- SMDA05CN-5.TBT - not recommended for use; use SMDA05C-7.TBT instead
