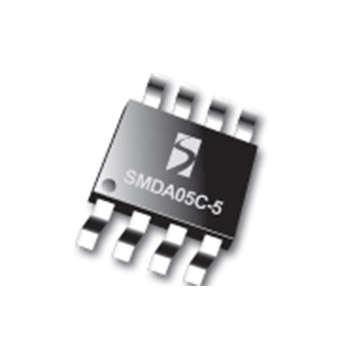

SMDA05C-5
SMDAxxC-5 系列瞬态电压抑制器旨在保护连接到数据和传输线的组件免受静电放电 (ESD)、电气快速瞬变 (EFT) 和照明引起的电压浪涌。
功能
- Protects 5 I/O lines
- Working voltage: 5 V
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- IEC 61000-4-5（雷电）12 A (8/20 µs)
- Small SO-8 surface-mount package
- 小漏电流
- Low operating and clamping voltages
- 固态硅雪崩技术
- RS-232 and RS-422 data lines
- Microprocessor-based equipment
- LAN/WAN equipment
- Notebooks, desktops, and servers
- Instrumentation
- 外围设备
- Set-top boxes
- Serial and parallel ports
应用
封装
- SO-8
订购代码
- SMDA05C-5.TBT: Lead-free, RoHS and WEEE compliant, 500 pcs T&R - Min order req. NCNR, Use SMDA05C-7.TBT
