SFC2282-50
Obsolete - this device is no longer available. Datasheet is for information purposes only.
功能
- Flip chip bidirectional EMI/RFI filter with integrated ESD protection
- ESD protection to
- IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
- IEC 61000-4-4 (EFT) 40 A (5/50 ns)
- Filter performance: attenuation 100 MHz to 3 GHz
- Small chip scale package requires less board space
- Low profile (< 0.65 mm)
- No need for underfill material
- Maximum dimensions: 1.5 x 1.0 x 0.65 mm
- Protection and filtering for two lines
- Working voltage: 5 V
- Solid-state technology
- Cell phone handsets and accessories
- Personal digital assistants (PDAs)
- Notebook and hand-held computers
- Portable instrumentation
- Pagers
- Smart cards
- MP3 players
- GPS
应用
封装

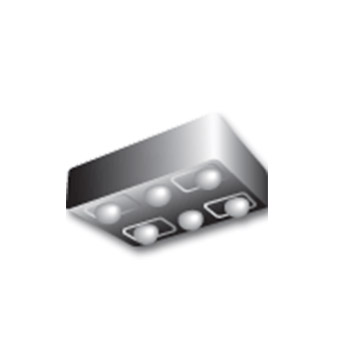

- Flip Chip
订购代码
