EClamp2508K

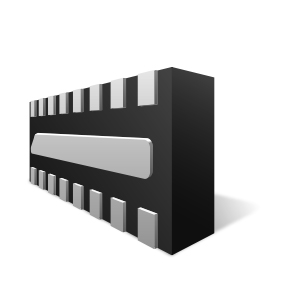

The EClamp® 2508K device is a low pass filter array with integrated TVS diodes. It is designed to suppress
unwanted EMI/RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
功能

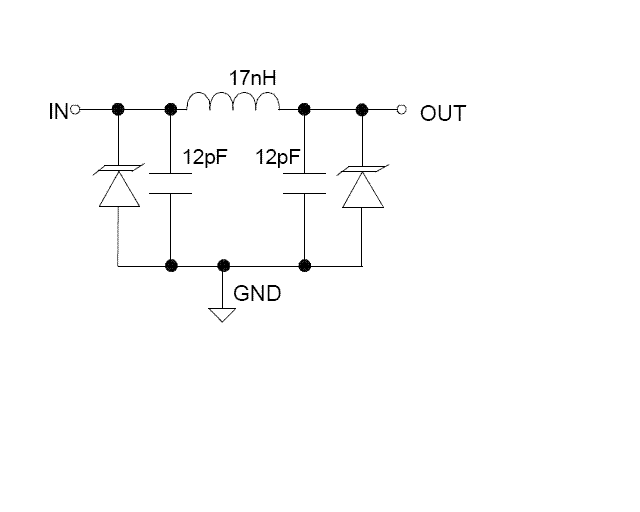

- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- Filter performance: 20dB minimum attenuation 800MHz to 2.7GHz
- TVS working voltage: 5V
- Inductor: 17nH (Typical)
- Capacitors: 12pF (Typical at VR = 2.5V)
- Protection and filtering for eight lines
- Solid-state technology
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
应用
封装
- SLP3313P16
订购代码
- EClamp2508K.TCT - 3000 PB-Free, Halogen Free, RoHS/WEEE Compliant
探索丰富的可下载资源和数据表，帮助原型制作和生产。
登录或注册 mySemtech，以获得限定的产品文档，并将文档添加到观察清单以获得更新提醒
