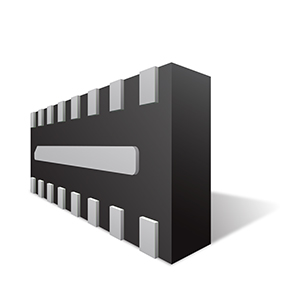

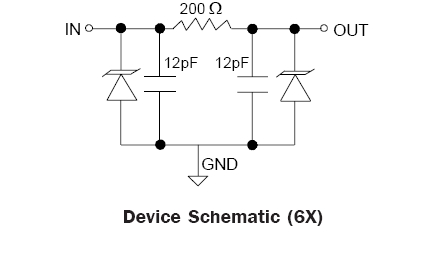

EClamp2388P
The EClamp®2388P is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
功能
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD 防护符合 IEC 61000-4-2 (ESD) 标准的 4 级要求，即 ±15kV（空气放电）和 ±8kV（接触放电）
- Filter performance: 30dB minimum attenuation 800MHz to 2.7GHz
- TVS working voltage: 5V
- 电阻：200Ω +/- 15%
- Typical Capacitance: 12pF (VR = 2.5V)
- Protection and filtering for eight lines
- Solid-state technology
- Lead-Free, RoHS and WEEE Compliant
- Color LCD Protection
- Cell Phone CCD Camera Lines
- CDMA/GSM 手机
应用
封装

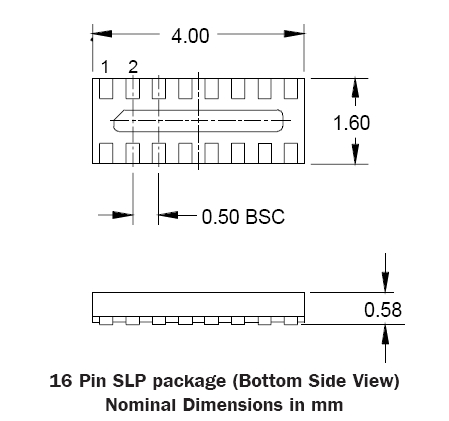

- SLP4016P16
- 3000 pcs.Tape & Reel
订购代码
- EClamp2388P.TCT
Pb(Lead)-Free/RoHS-Green Info
