Semtech EClamp2378P
彩色 LCD 接口的 ESD-EMI 8 线防护
The EClamp®M2378P is a low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI-RFI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment.
概览
Features
- Bidirectional EMI/RFI filter with integrated TVS for ESD protection
- ESD protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (air), ±8kV (contact)
- Filter performance: 30dB minimum attenuation 1.8GHz to 2.5GHz
- TVS working voltage: 5V
- Resistor: 100Ω +/− 15%
- Typical Capacitance: 20pF (VR = 0V)
- Protection and filtering for eight lines
- Solid-state technology
应用
- Color LCD Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones
Packaging

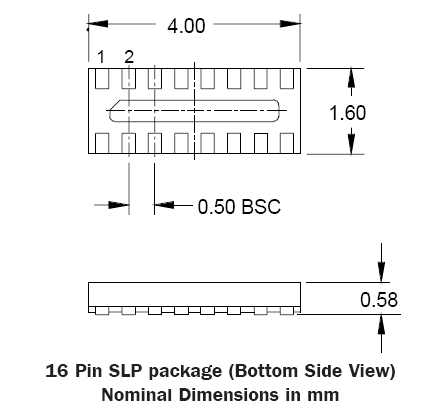

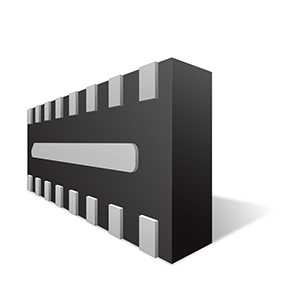

SLP4016P16
Order Codes
- EClamp2378P.TCT: 3000 pcs. Tape & Reel
Diagrams and Specs

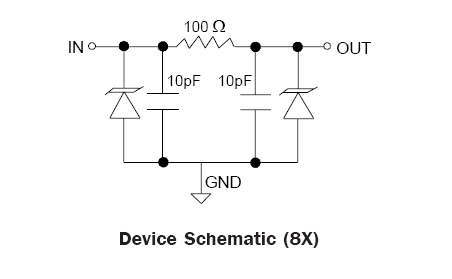

Block Diagram
Click diagram to enlarge
