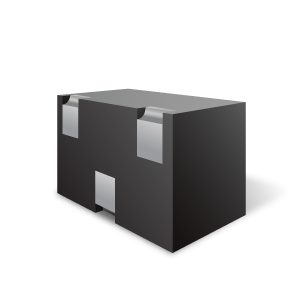

uClamp2482PWQ
µClamp® series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to electrostatic discharge (ESD) and surge. They feature large cross-sectional area junctions for conducting high transient currents. They offer desirable characteristics for board level protection including fast response time, low operating and clamping voltage and no device degradation.
µClamp2482PWQ 为工作电压高达 24V 的两条线路提供保护。其突出的 ESD 特性是高 ESD 耐压（根据 IEC 61000-4-2 为 +/-30kV 接触/空气放电）和低动态电阻。每条线路的额定最大电气过载 (EOS) 电流为 5A (tp = 8/20µs)。
功能
- 瞬变保护符合以下标准：
- IEC 61000-4-2 (ESD)：30kV（空气），30kV（接触）
- IEC 61000-4-4 (EFT)：4kV (5/50ns)
- IEC 61000-4-5（雷电）：5A (8/20µs)
- 符合 AEC-Q100 1 级和 AEC-Q101 认证
- 可焊性侧面封装
- Protects two data lines
- 工作电压：±24V
- 电容：最大 18pF
- 固态硅雪崩技术
- 汽车应用
- CAN 总线
- FlexRay 总线
- Industrial equipment
应用
封装
- DFN 1.3 x 0.8 x 0.55mm – 3 引脚
订购代码
- µClamp2482PWQ.C：无铅、无卤素且符合 RoHS/WEEE 标准，3,000 颗。
