RClamp0521PA
RailClamp® TVS arrays are ultra low capacitance ESD protection devices designed to protect high speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
功能
- 数据线路瞬变保护符合以下标准
- IEC 61000-4-2 (ESD) ±15kV(空气),±8kV(接触)
- IEC 61000-4-4 (EFT) 40 A (tp = 5/50ns)
- 电缆放电事件 (CDE)
- 超小型封装 (1.0 x 0.6 x 0.5 mm)
- 保护一条数据或 I/O 线路
- 低电容:0.5pF
- 钳位电压低
- Low operating voltage: 5.0V
- 固态硅雪崩技术
- 蜂窝手机和配件
- 数字视频接口 (DVI)
- 显示器端口
- MDDI Ports
- USB Ports
- PCI Express
- Serial ATA
应用

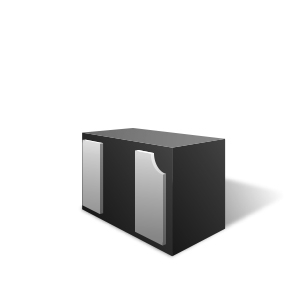

封装
- SLP1006P2
订购代码
- RClamp0521PATCT: Pb-Free, Halogen Free, RoHS/WEEE Compliant
