GV8601

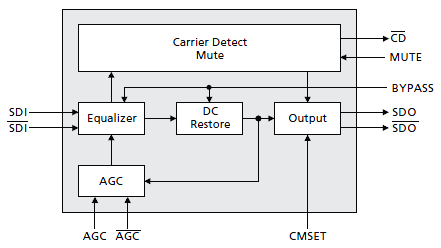

The GV8601 is a high-speed BiCMOS integrated circuit designed to equalize and restore signals received over 75 ohms coaxial cable. The GV8601 is designed to support HDcctv 1.0, ST 292 and ST 424, and is optimized for performance at 1.485Gb/s and 2.97Gb/s serial data. The GV8601 features DC restoration to compensate for the DC content of HDcctv 1.1 pathological test patterns.
功能
- HDcctv 1.0, HD-SDI (ST 292), 3G-SDI (ST 424) and SD-SDI (ST 259) compliant
- 自动电缆均衡
- Multi-standard operation from 143Mb/s to 2.97Gb/s
- Small footprint (4mm x 4mm)
- 无铅且符合 RoHS 标准
- 手动旁路（适用于具有缓慢上升/下降时间的低数据速率）
- Performance optimized for 1.485Gb/s (HDcctv/HD-SDI) and 2.970Gb/s
- Differential outputs support DC coupling to 3.3V and 2.5V CML logic
- Typical equalized length of Belden 1694A cable: 140m at 2.97Gb/s
- Typical equalized length of Belden 543945 HDcctv 1.1 reference cable: 150m at 1.485Gb/s
- Typical equalized length of Belden 543945 HDcctv 1.1 reference cable: 330m at 270Mb/s (using HD-VLC™)
- 50 ohm differential output (internal 50 ohm pull-ups)
- 3.3 V 单电源运行
- Operating temperature range: -20°C to +85°C
- Digital video recorders (DVR)
- Video capture cards
- Video monitors and displays
- Video mixers and switchers
- 视频服务器
- Camcorders
- Distribution amplifiers
- Repeaters
应用
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
GV8601
产品描述
ADAPTIVE CABLE EQUALIZER
引脚数
16
封装类型
QFN
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
