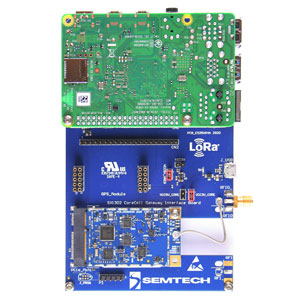

Semtech SX1302CxxxGW1

功能

• 10x power reduction compared to legacy products
• Maximum TX output power (EU868/US915) = +27 dBm
• Maximum TX output power (CN490) = +17 dBm
• Receive 8 LoRa® channels multi-data rates (SF5 ~ SF12 / 125 Simultaneously kHz) + 2 mono-data rate (LoRa® 250 / 500 kHz and FSK 50 kbps)
• Half Duplex mode
• Typical sensitivity level (EU868/US915) :
  • -141 dBm at SF12 BW 125 kHz
  • -127 dBm at SF7 BW 125 kHz
  • -111 dBm at FSK 50 kbps
• Typical sensitivity level (CN490) :
  • -141 dBm at SF12 BW 125 kHz
  • -126 dBm at SF7 BW 125 kHz
  • -111 dBm at FSK 50 kbps

应用

• 智能家居
• 楼宇自动化
• 工厂自动化

订购代码

SX1302C868GW1 for Europe ISM band reference design full kit,
SX1302C868GW1_L for Europe ISM band reference design mini kit,
SX1302C915GW1 for US ISM band reference design full kit,
SX1302C915GW1_L for US ISM band reference design mini kit,
SX1302C490GW1 for China ISM band reference design kit.
