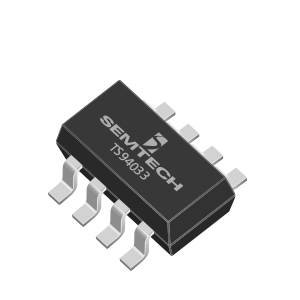

TS94033
Not recommended for new designs.
The TS94033 is a low power, low offset high-side current sense amplifier. It utilizes a chopper-stabilized configuration to provide high gain-bandwidth while reducing input offset and 1/f noise. The sense amplifiers offer high voltage inputs and a 0 to 3.3V output. The supply voltage range of 4V to 42V can accommodate a wide variety of applications.
Also available in AEC-Q100 version TS94033Q
功能
- Low Offset
- Low Offset
- High Voltage Input
- Supply voltage: 4V-42V
- Low Temperature Drift
- Low input bias current
- Pedestal Voltage for offset compensation
- Available in 8-pin SOT-23 package
- Product is lead-free, Halogen Free, RoHS / WEEE compliant
- Multi-standard compliant and non-compliant wireless chargers for:
- Cell Phones and Smartphones
- Qi-Compliant Wireless Charging Transmitters
- Tablets and eReaders
- Notebook Computers
- Telecom Equipment
- 电源管理
- 电池充电器
- Welding Equipment
应用
封装
- Tape & Reel (3000 parts/reel), lead-free, halogen free, RoHS/WEEE compliant
订购代码
- TS94033SKTRC - Current Sense Amplifier
Distributor/Catalog Supplier Inventory
View product availability from participating distributors below. Browse all distributers here.
| Part # | 国家/地区 | Qty | Buy | 经销商 |
|---|
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
TS94033
产品描述
CURRENT SENSE AMPLIFIER
引脚数
8
封装类型
SOT-23
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
MATTE Sn
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
Whisker Testing (10)
热循环锡须测试
（-40°C 至 +85°C / 4000 循环）
（-40°C 至 +85°C / 4000 循环）
是
环境温度存储，锡须测试
（50°C，4000 小时）
（50°C，4000 小时）
是
60°C/90% 相对湿度 4000 小时，锡须测试
是
声明和报告
IPC-1752-2
Related Parts
TS94033QSKTRC
