概览

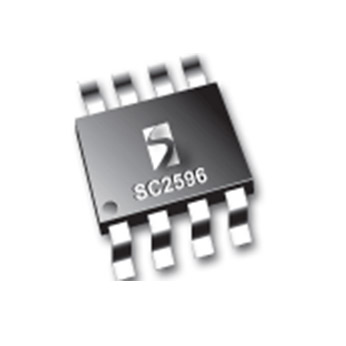

The SC2596 is an integrated linear DDR termination device, which provides a complete solution for DDR termination regulator designs; while meeting the JEDEC requirements of SSTL-2 and SSTL-18 specifications for DDR-SDRAM termination.
封装
- SOIC-8 EDP
订购代码
- SC2596SETRT: Lead-free, Halogen-free, RoHS and WEEE compliant, 2500 pcs. Tape & Reel
- SC2596EVB: SC2596 Evaluation Board
PB Free/ROHS
Learn More →功能
- Sourcing or sinking 2.5A for DDR-I
- Sourcing or sinking 1.5A for DDR-II
- AV(CC) undervoltage lockout
- Reference output
- Minimum number of external components
- Accurate internal voltage divider
- Disable function, puts device into sleep mode
- Thermal shutdown
- Over current protection
- Available in SOIC-8 EDP package
- Pb-free, Halogen free, and RoHS/WEEE compliant
| 文档 | Release Date | Type |  |
|---|---|---|---|
| SC2596 Datasheet | 2019-05-31 | | |
应用
- DDR-I and DDR-II memory termination
- SSTL-2 and SSTL-3 termination
- HSTL termination
- PC motherboards
- Graphics boards
- Disk drives
- CD-ROM drives
