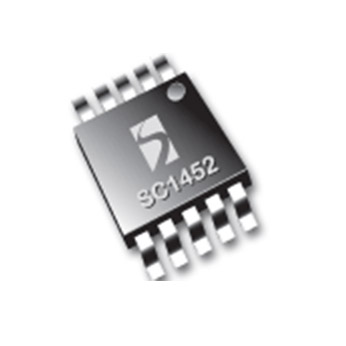

Semtech SC1452
Dual 150mA LDO Regulator with Programmable Reset
Not Recommended for New Designs - Last Day of purchase: 5/1/11
概览
功能
- Up to 150mA per regulator output
- Low quiescent current (130μA typical with both outputs at 150mA)
- Low dropout voltage
- Wide selection of output voltages
- Stable operation with ceramic caps
- Tight load and line regulation
- Current and thermal limiting
- Reverse input polarity protection
- <1μA off-mode current
- Logic controlled enable
- Active low resets valid for V(IN) down to 0V
- Programmable reset
- Full industrial temperature range
- 10-Pin MSOP package. Also available in Lead-free, fully WEEE and RoHS compliant
应用
- Cellular telephones
- Palmtop/laptop computers
- Battery-powered equipment
- Bar code scanners
- SMPS post regulator/DC to DC modules
- High-efficiency linear power supplies
- DSP supplies
封装
MSOP-10
订购代码
- SC1452AIMSTR: Package Minimum Tape & Reel Only
- SC1452BIMSTR: Package Minimum Tape & Reel Only
- SC1452CIMSTR: Package Minimum Tape & Reel Only
- SC1452DIMSTR: Package Minimum Tape & Reel Only
- SC1452EIMSTR: Package Minimum Tape & Reel Only
- SC1452FIMSTR: Package Minimum Tape & Reel Only
- SC1452GIMSTR: Package Minimum Tape & Reel Only
- SC1452JIMSTR: Package Minimum Tape & Reel Only
- SC1452KIMSTR: Package Minimum Tape & Reel Only
