SC33021
Not Recommended for New Designs
Not Recommended for New Designs. Datasheet is for information purposes only.

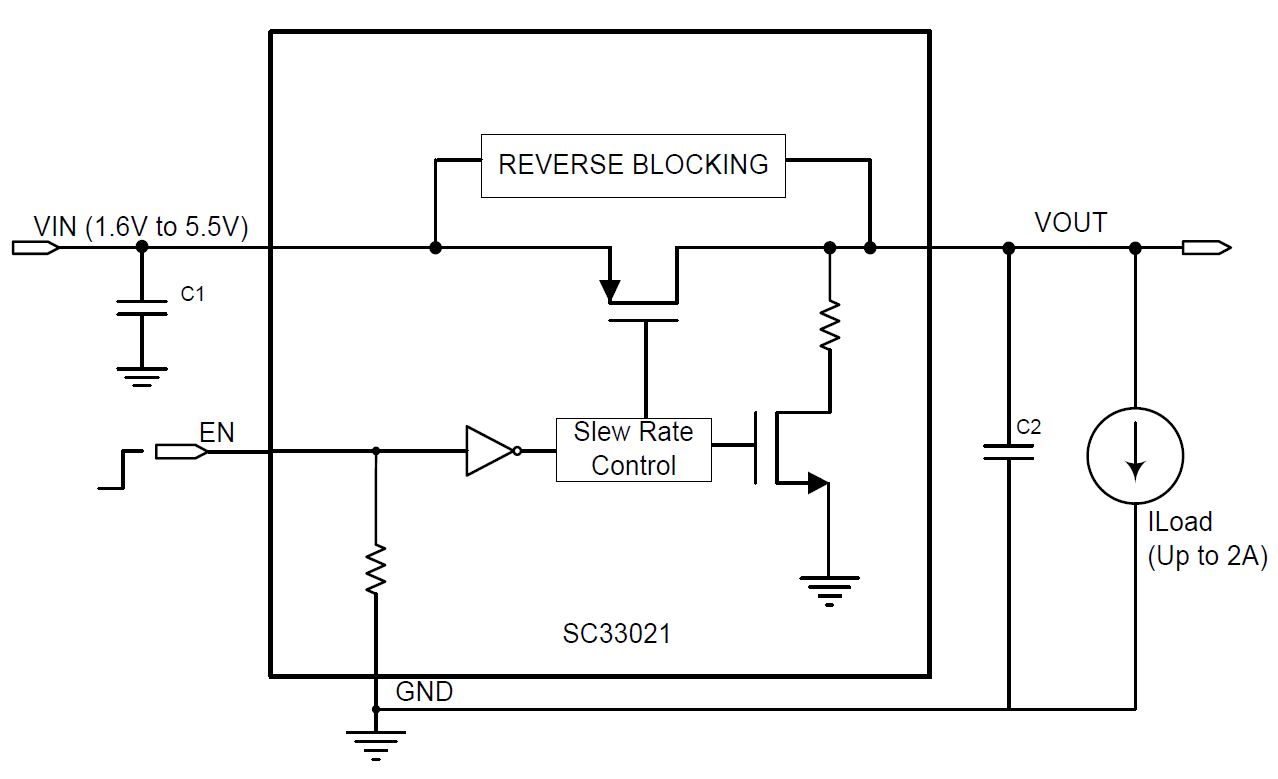

The SC33021 is an integrated 2A Load Switch with reverse current blocking. It operates from a 1.6V to 5.5V input supply. The SC33021 includes an automatic output discharge.功能
- Input Voltage Range – 1.6V to 5.5V
- 2A Continuous Output Current
- Ultra Low Ron – 32m ohm
- Reverse Current Blocking
- Automatic Output Discharge
- Low Quiescent Current – 0.8μA
- Low Shutdown Current – 0.3μA
- Internal Soft Start
- 硬化 ESD 防护 5kV
- Package: CSP – 0.9mm x 0.9mm 4–Bump
- Wearable Electronics
- Tablet PCs, eReaders
- Smartphones
- Notebook PCs, Ultrabooks
- Battery Powered Equipment
- Other Portable Devices
应用
封装
- CSP – 0.9mm x 0.9mm 4–Bump - 5,000 pcs, tape and reel only.
订购代码
- SC33021CSTRT - Lead-free package only. Device is WEEE and RoHS compliant, and halogen free.
Pb(Lead)-Free/RoHS-Green Info
Base Part Number (1)
SC33021
产品描述
2A LOAD SWITCH WITH REVERSE CURRENT BLOCKING
引脚数
4
封装类型
WLCSP
Pb-Free (2)
是
Reflow Temp °C (3)
260
引脚或焊球镀层
SnAgCu
MSL 等级
1
JIG 101 A & B (12)
是
WEEE 2012/19/EU (19)
是
China RoHS 2 GB/T 26572-2011
是下载报告
RoHS Compliant by Exception (8)
否
声明和报告
IPC-1752-2
Please consult with your Semtech Sales Rep
