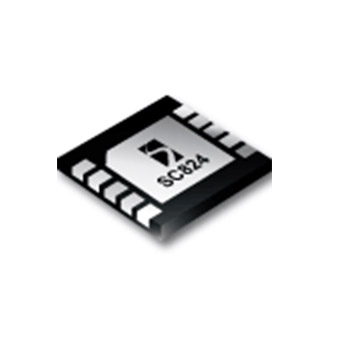

SC824
Not Recommended for New Designs
Not recommended for new designs.
功能
- Single input 30V protected charger
- Adapter, USB High, USB Low modes
- Charging by current regulation, voltage regulation,
and thermal limiting - Programmable currents from 70mA to 1A
- Fast-charge current regulation — 15% at 70mA,
9% at 700mA - Constant voltage — 4.2V, 1% regulation
- Input voltage protection 30V
- Current-limited adapter support capability — reduces power dissipation in charger IC
- USB modes automatically reduce charge current if needed to prevent USB VBUS overload
- Instantaneous CC-to-CV transition for faster charging
- Battery temperature NTC thermistor interface
- Multi-stage charge timer for safety and alternative
termination, IEEE Std. 1725-2006 compliant - Termination on current or timer — first to occur
- Soft-start reduces adapter or USB load transients
- High operating voltage range permits use of unregulated adapters
- Complies with CCSA YD/T 1591-2006
- High-current USB Dedicated Charger compatible
- Ultra-thin 2x2x0.6 (mm) MLPD package
- Lead-free and halogen-free
- WEEE and RoHS compliant
- Mobile phones
- Personal Media Players
- Personal Navigation Devices
应用
封装
- MLPD-10 2x2
订购代码
- SC824ULTRT: Lead Free, WEEE and RoHS Compliant, 3,000 pcs Tape and Reel only
